If you’re interested in the Microsoft Surface Pro, you should also check out the product covered in this article, the Acer Switch 5 SW512-52.
Much like the Surface Pro, this one is a Windows tablet with a similar form factor, a kick-stand on the back and an attachable keyboard folio. It gets a 12-inch 3:2 IPS touchscreen with pen support and all the components are tucked behind it, inside a nicely built metallic chassis.
Unlike most other similar 2-in-1s though, Acer puts a passively cooled Core U processor in this device, so the Switch 5 offers the power required to handle everyday activities and multitasking, but without the noise of a spinning fan.
It’s not the only fanless Core U Windows tablet out there, but is nonetheless one of the very few, alongside the Microsoft Surface Pro 5 (Core i5 version only) and the Acer Aspire Switch 12 Alpha. Most other options are fan-cooled, like the Asus Transformer 3 Pro, Lenovo Miix 720, the 2017 HP Spectre X2 or the Dell Latitude 12 2-in-1.
The fanless aspect is a significant selling point, and given its
much more affordable pricing compared to the Surface, the Switch 5 will attract many eyes. We’ve gathered all our impressions below, with details on its strong points and its shortcomings, so by the end of the article you’ll know if this is the right device for your needs (or not) and how it fares against the competition.
Specs as reviewed
Acer Switch 5 SW512-52
Screen 12.0 inch, 2160 x 1440 px, 60 Hz, IPS, touch, pen support
Processor Intel Kaby Lake-R Core i5-7200U
Video Intel HD 620
Memory 8 GB LPDDR3 (soldered)
Storage 256 GB SSD (M.2 80 mm NVMe)
Connectivity Wireless AC (Qualcomm Atheros QCA6174), Bluetooth 4.1
Ports 1x USB-A 3.0, 1x USB-C 3.1 gen 1, mic/headphone, microSD card reader
Battery 39 Wh, 45 W power brick
OS Windows 10
Size Tablet: 293 mm or 11.50” (w) x 203 mm or 7.99” (d) x 9.6 mm or 0.37” (h)
Tablet and Folio: 293 mm or 11.50” (w) x 203 mm or 7.99” (d) x 16 mm or 0.62” (h)
Weight Tablet: 0.91 kg / 2.00 lbs
Tablet and Folio: 1.28 kg / 2.82 lbs
Power brick: .155 kg/ .34 lbs
Extras backlit keyboard, HD front camera, 8MP back camera, front facing stereo speakers

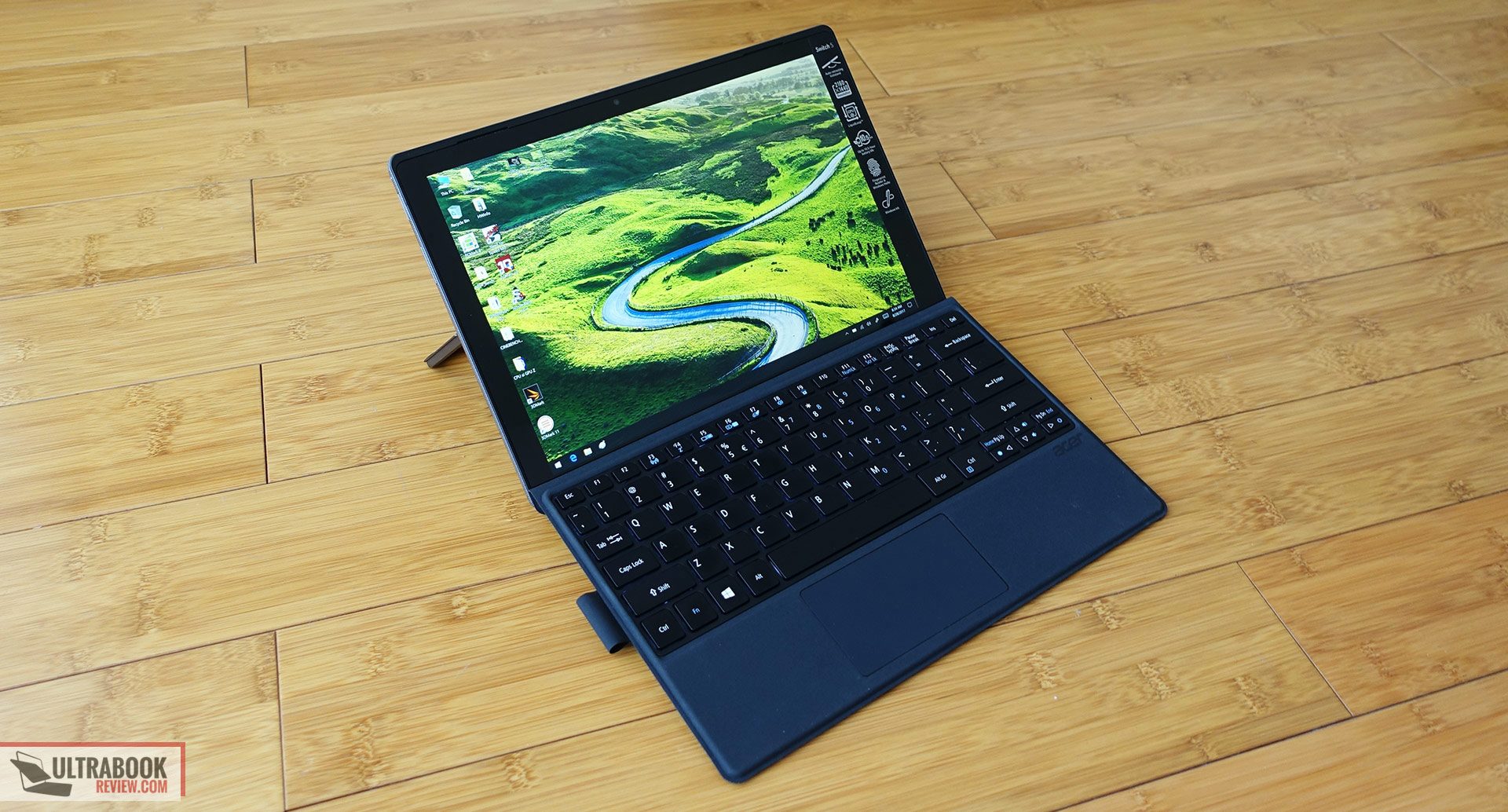

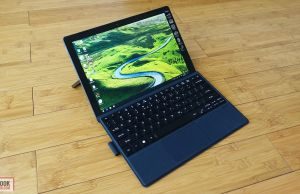

Design and first look
It’s very important to reiterate that the Acer Switch 5 is a mid-range product and thus much cheaper than the Surface Pro 5. The i5 configuration with 8 GB of RAM and 256 GB SSD is listed at $799 in the US and around 1000 EUR in Europe (the keyboard and pen are included), while a similarly configured Surface sells for $1300 (without the pen and keyboard), while a 2017 HP Spectre X2 goes for $1250 (with the pen and keyboard). I’ve mentioned these two because they are imo the best looking and built devices with this kind of tablet-like form-factor.
Back to the Switch 5, it’s by no means poorly crafted or ugly, but it’s not as nice and carefully polished as those other two. The tablet alone weighs around 2 lbs and its outer case is entirely made out of metal. It’s doesn’t bend or squeak when used, and it’s fairly comfortable to hold as well, thanks to the blunt edges and rounded corners.

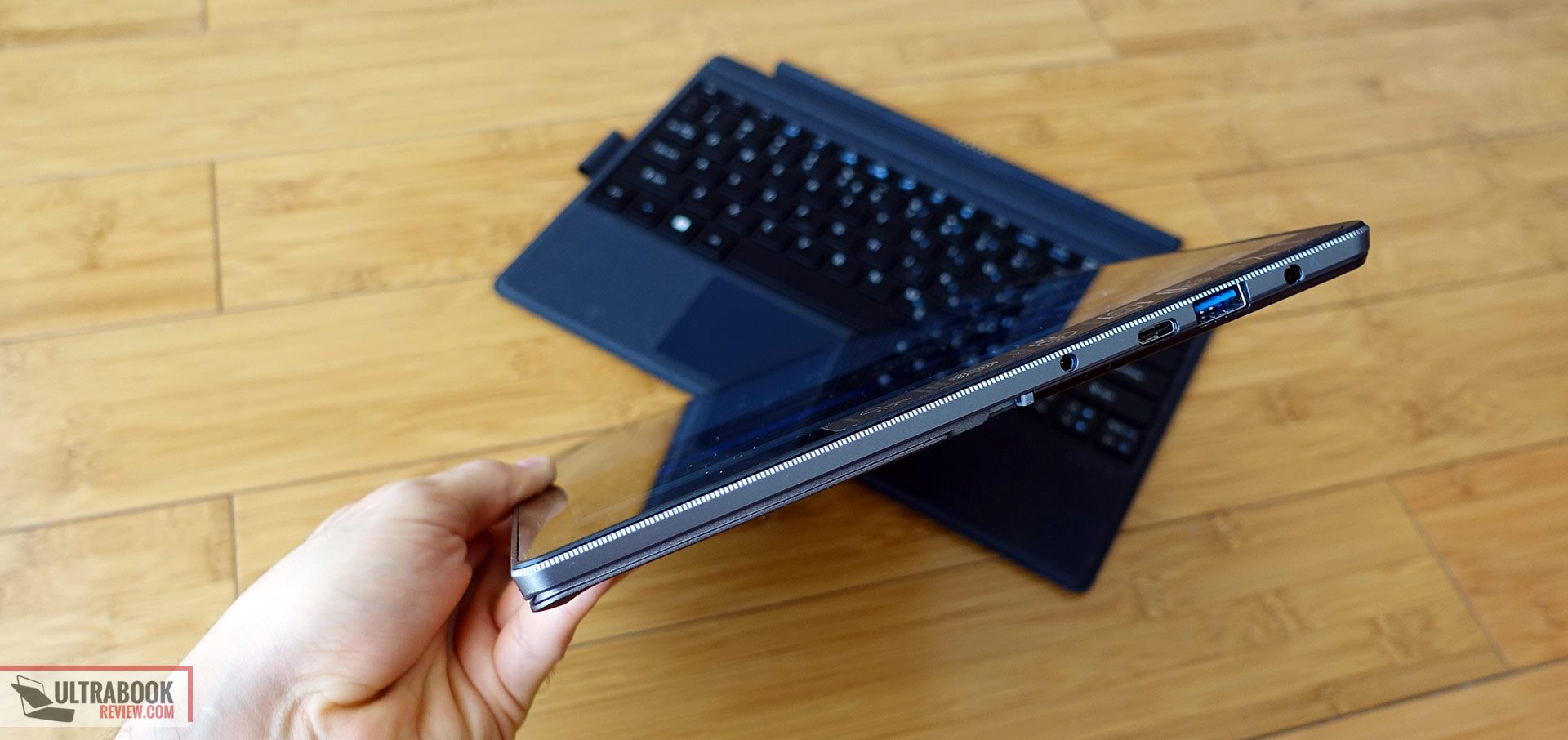

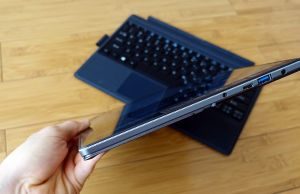

The only questionable aesthetic choice is the serrated edge around the front side, which looks rather cheap imo. It’s a minor detail and I’d expect most to be fine with it.

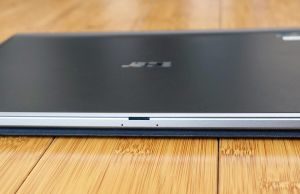

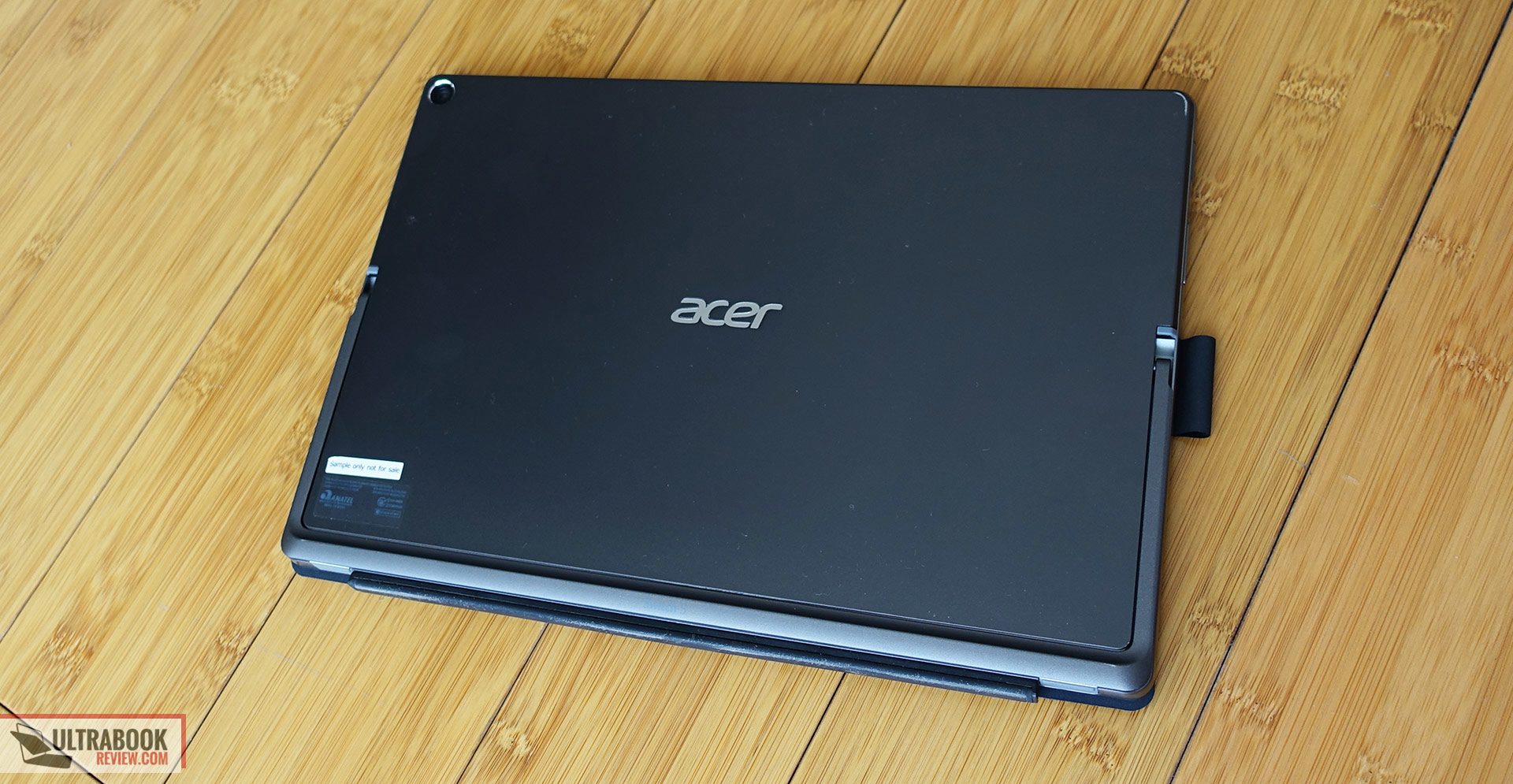

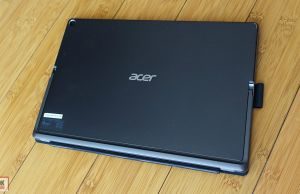

Having a quick look around this Switch, you’ll notice that the back is very simple and only houses a camera, while the front is almost entirely covered in glass and accommodates two narrow speakers grills on the top.

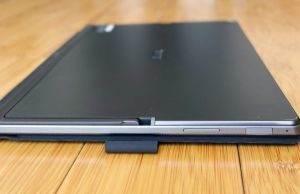

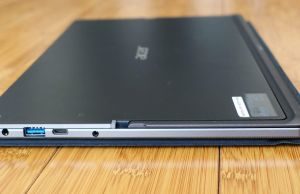

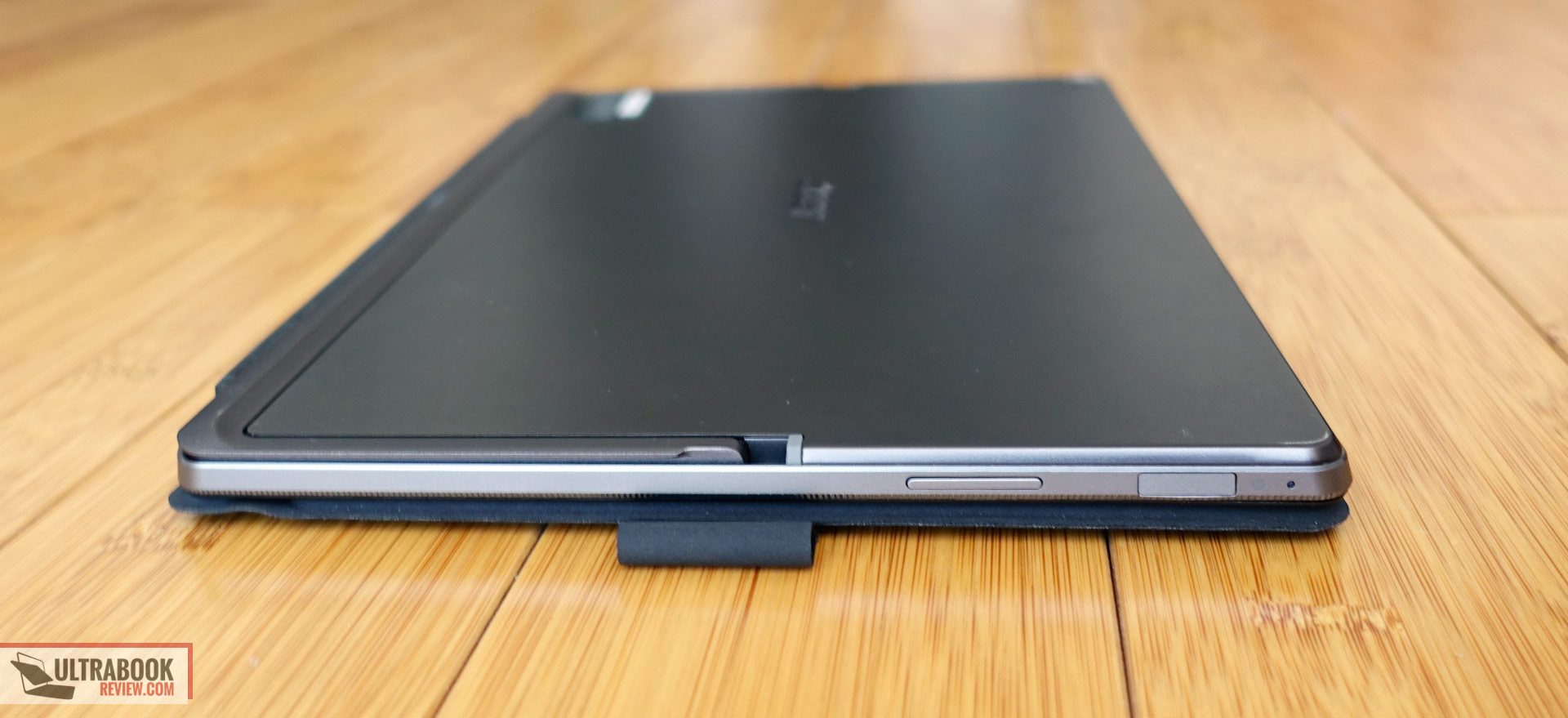

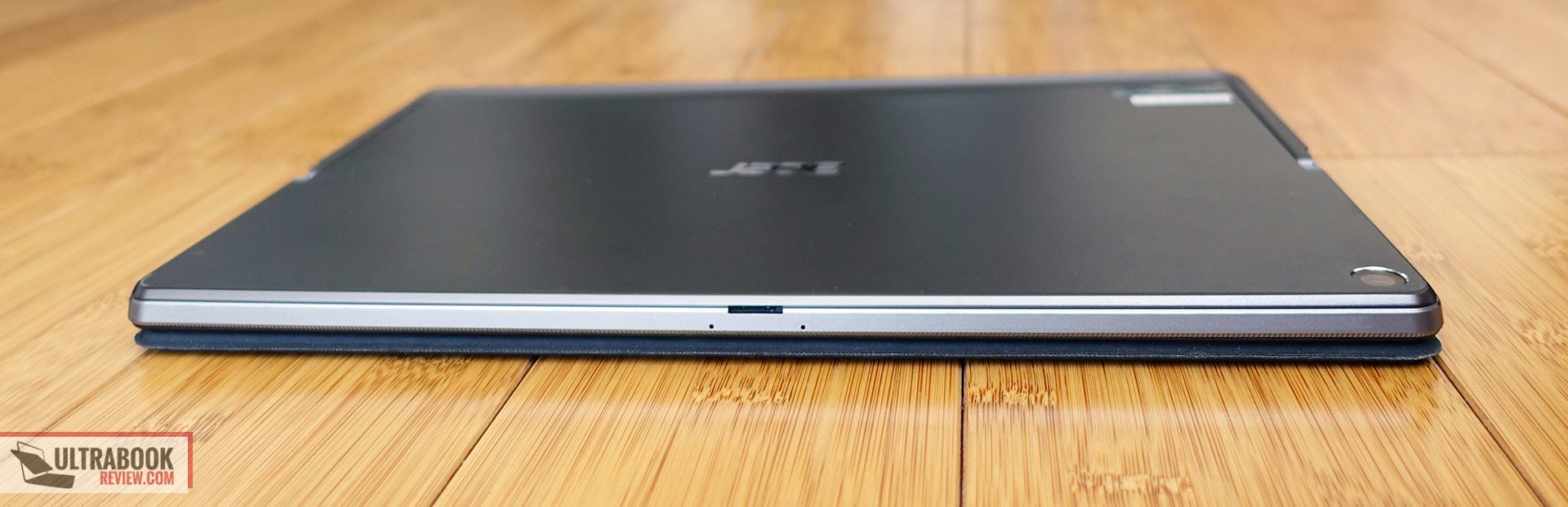

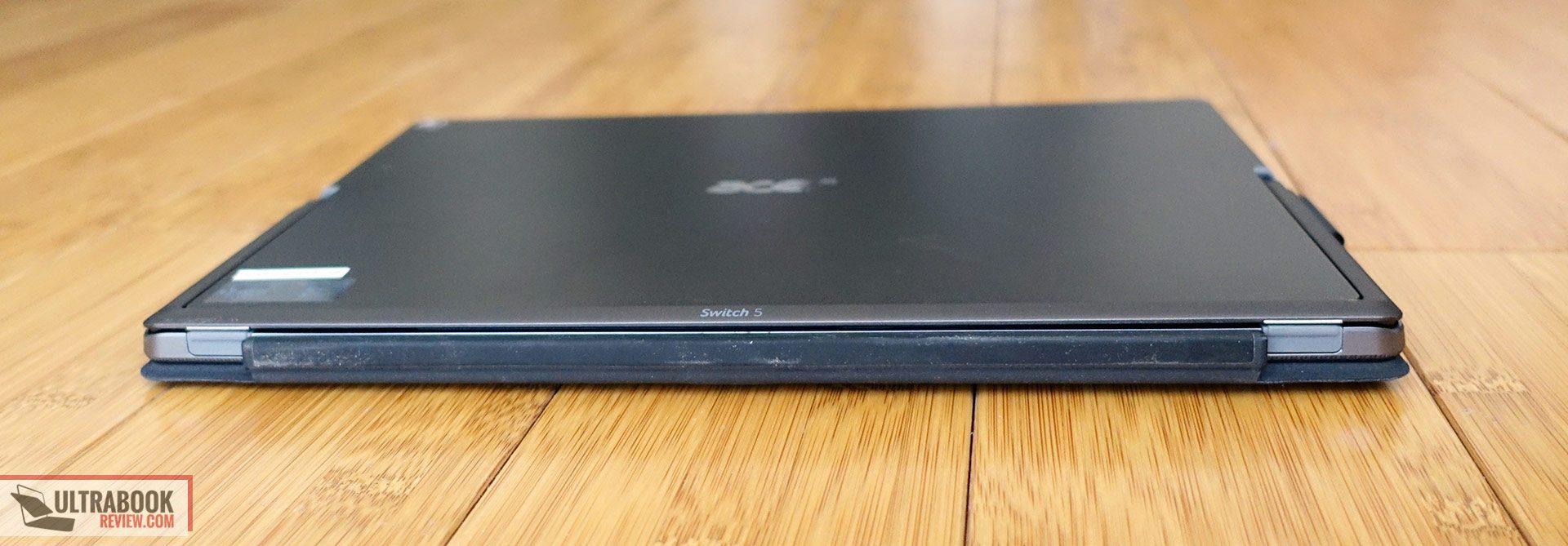

All the other buttons and ports are placed around the edges. There’s a volume rocker and power button (with an integrated fingerprint-reader) on the right side, there’s a full-size USB A, an USB-C (gen 1, without Thunderbolt 3) and a headphone jack on the right, alongside the PSU, while on the top lip Acer placed a microSD card-reader flanked by two microphone pins. There are of course no intake and exhaust grills on the sides, as this device is passively cooled.
The lack of Thunderbolt 3 might steer some of you away, but the Switch 5 can still hook up to a 4K 60 Hz screen though the USB-C port and, while I haven’t tested it, can also charge via USB-C based on some of the comments I’ve read online.

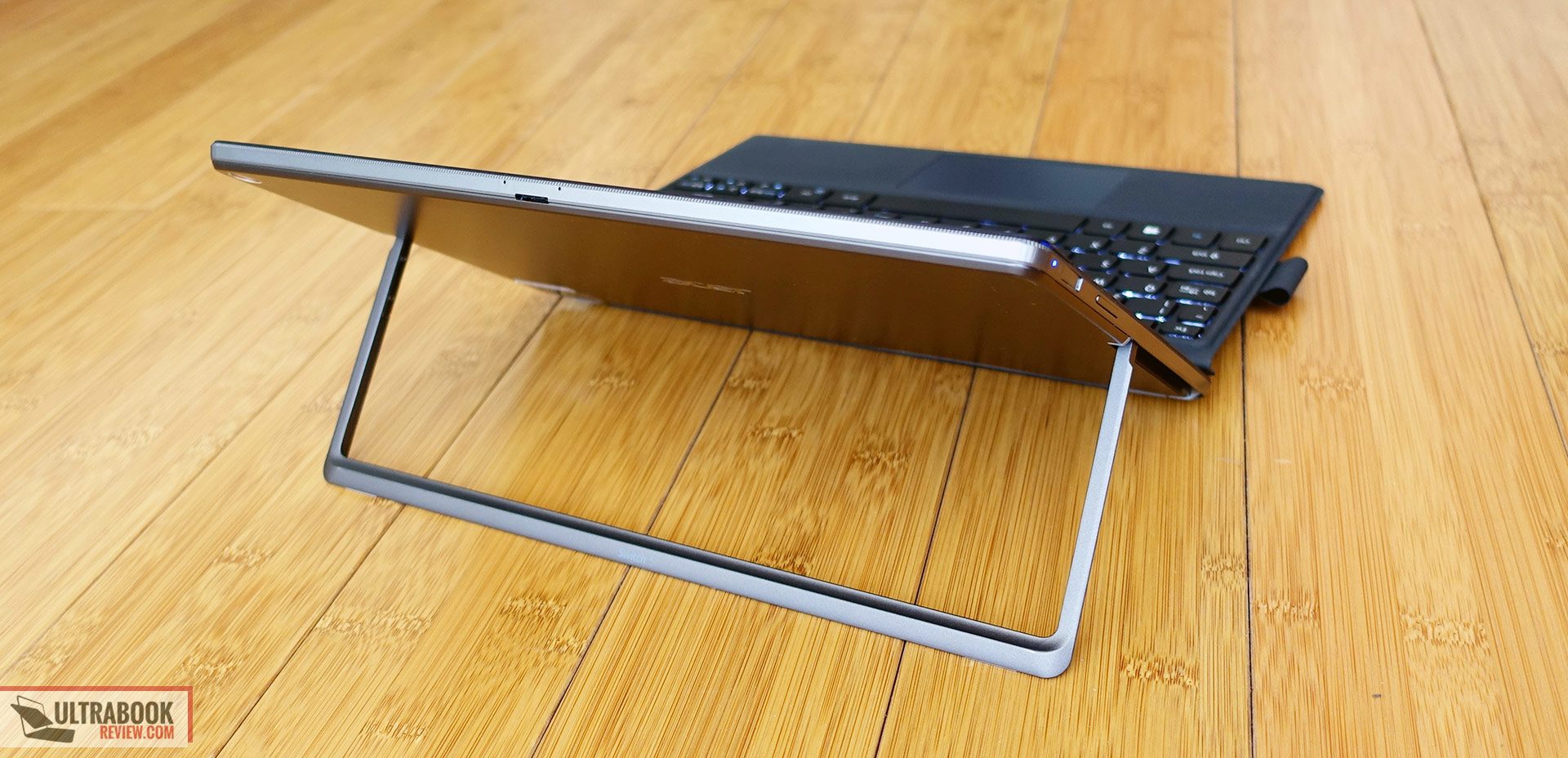

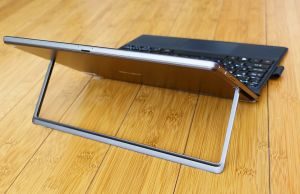

That aside, let’s talk about the kickstand and it’s unusual mechanism, different than what the other OEMs put on their similar computers. The kickstand is built within the back and stands out a little bit, which actually means the tablet won’t rest entirely on the metallic back when layed down, which should prevent it from scratching, to some extent. The kickstand is a bit stiff though and not that easy to open, as it lacks any creases for the fingers to grab it from, thus your fingertips and nails might suffer. These aren’t its main peculiarity though.

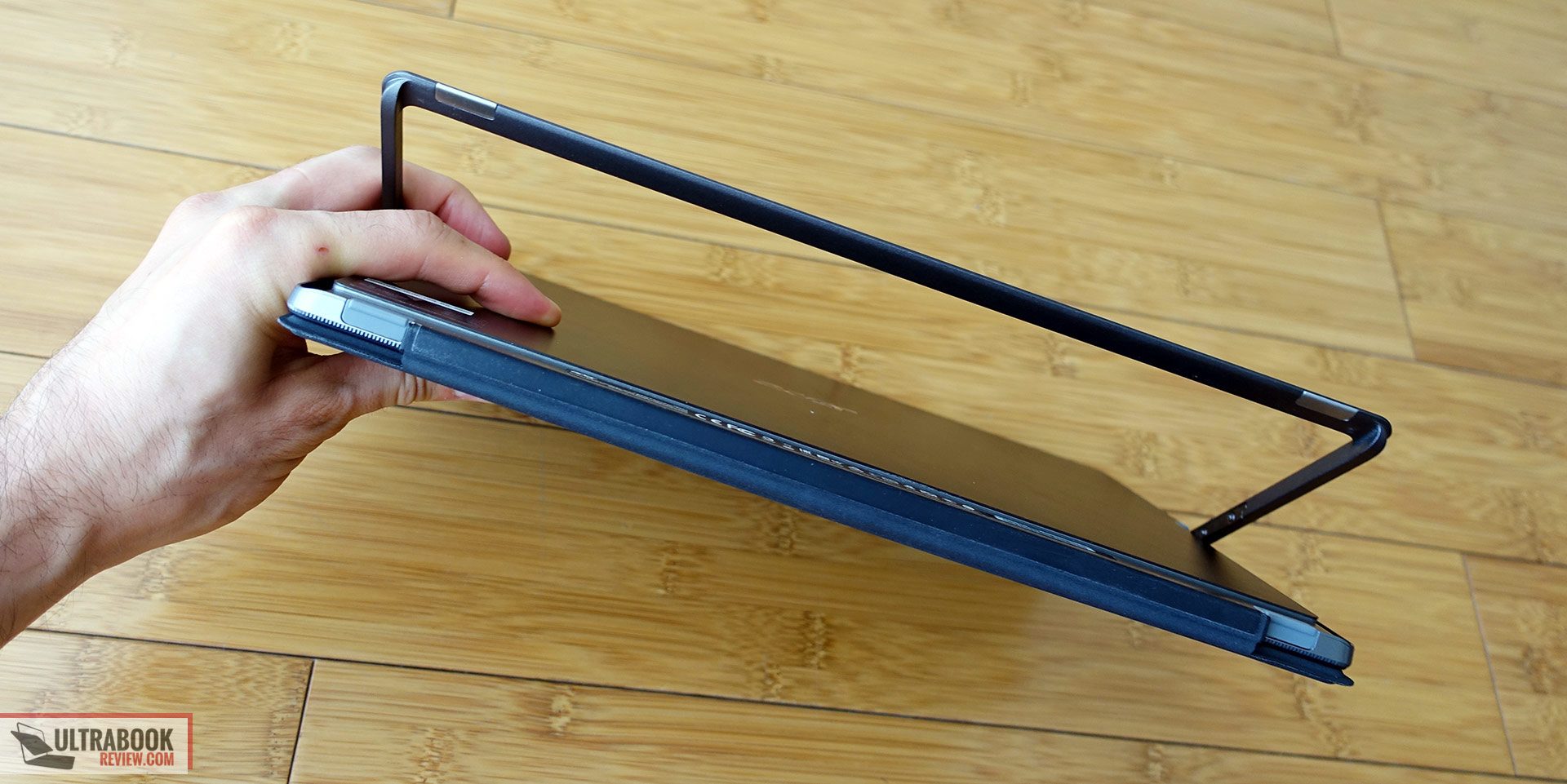

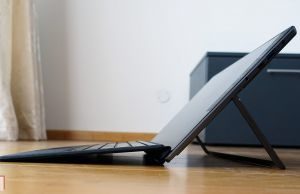

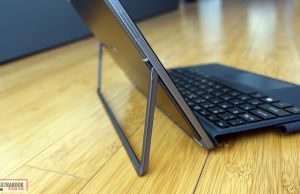

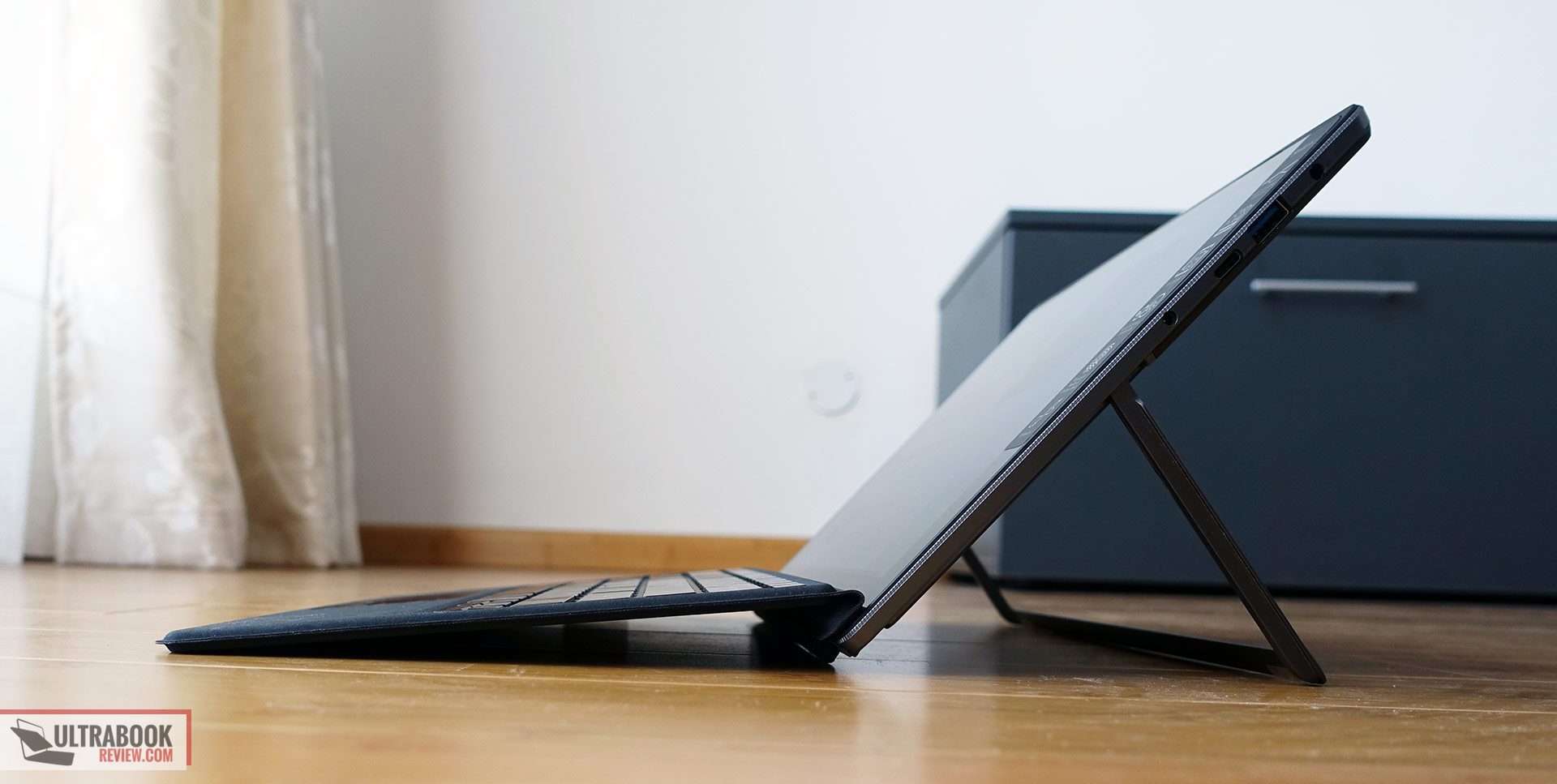

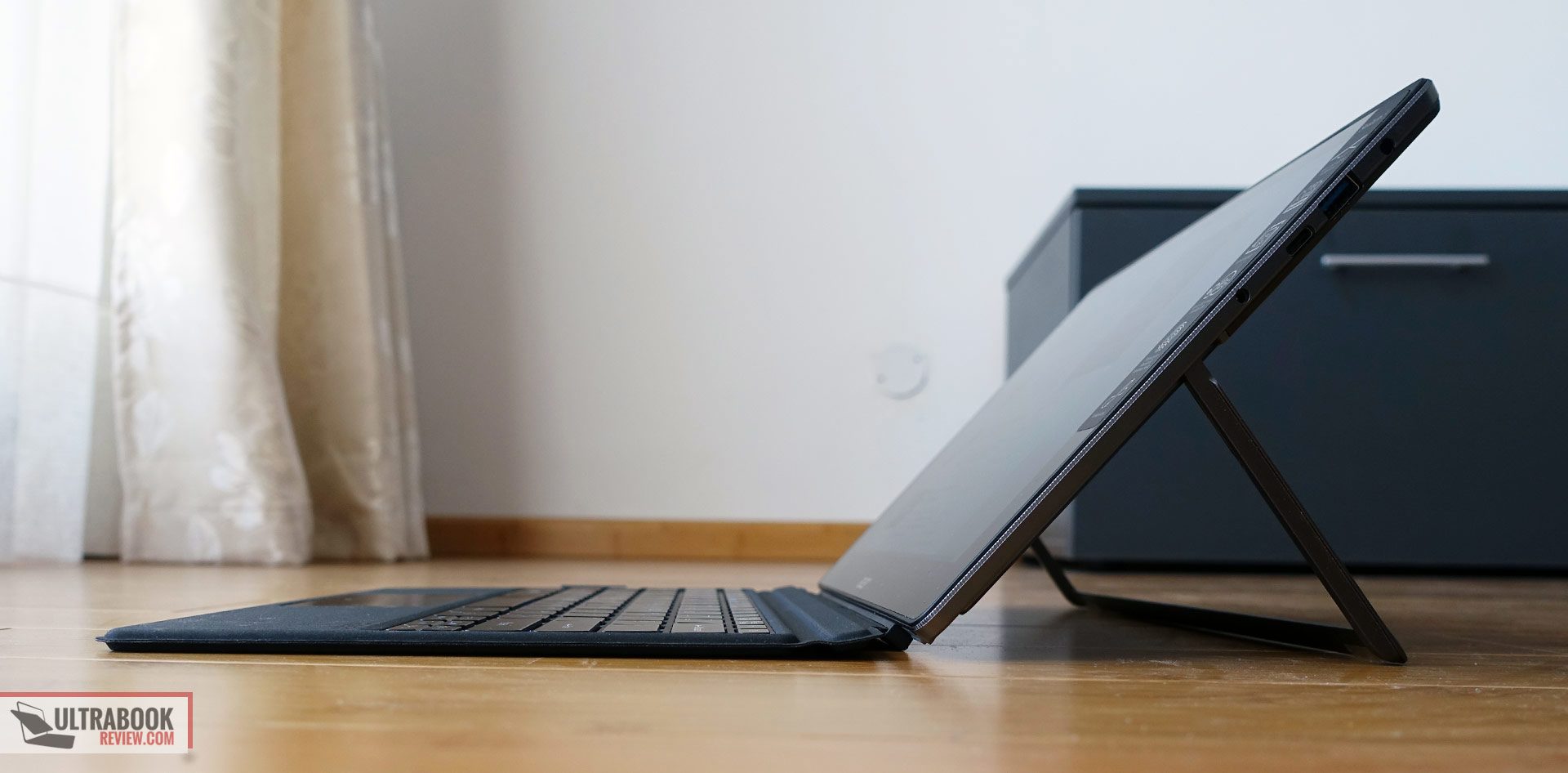

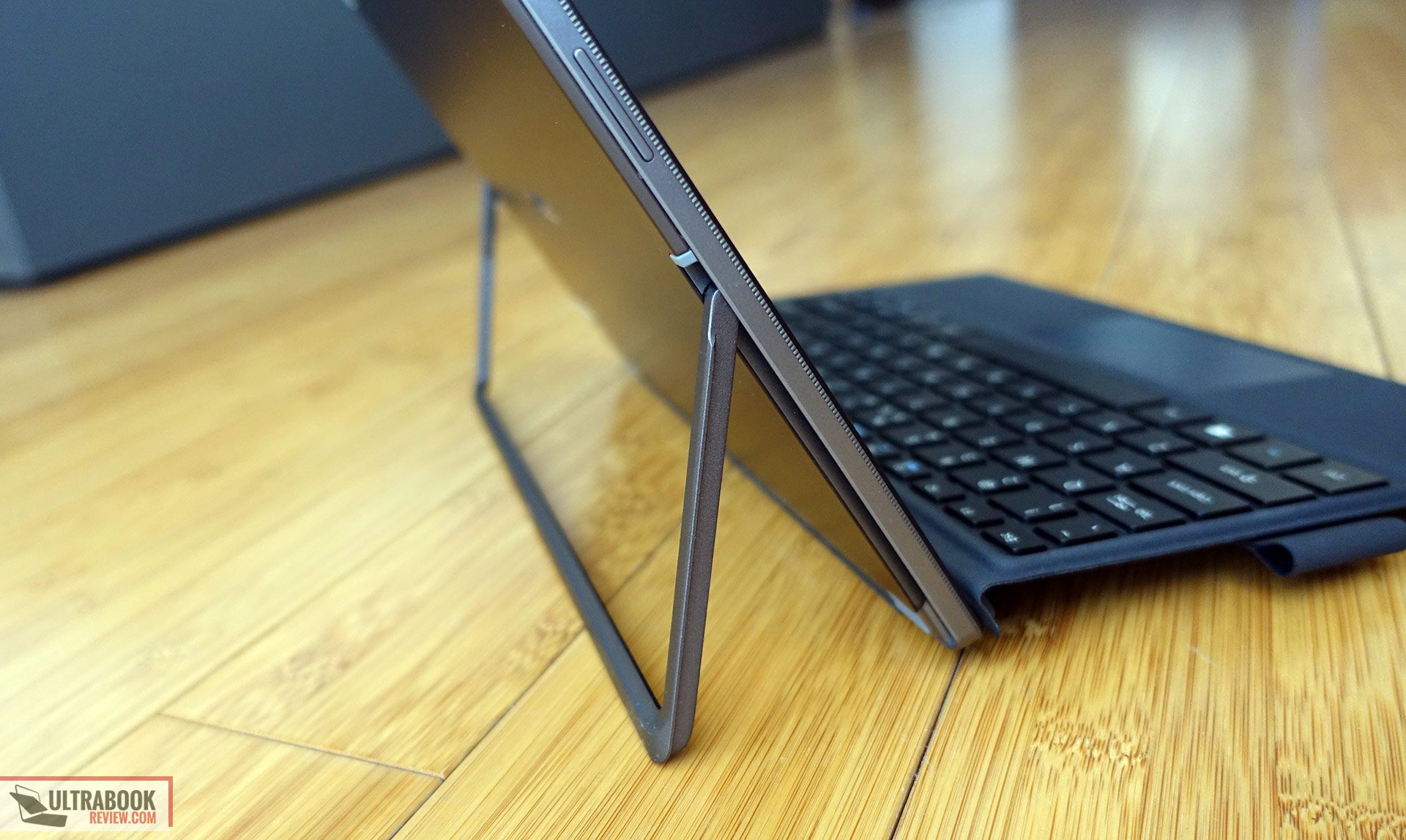

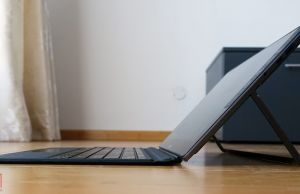

This kickstand opens to a fixed position that keeps the screen at a 110-120 degrees angle. From here on you just have to press on the screen and the kickstand will smoothly slide open to the desired position, but then if you pick up the device it will immediately come back to its aforementioned fixed position. I can live with this approach on a desk, while watching a movie or emulating a laptop, where the device is placed on a fixed surface and I don’t have to move it. Those rubbery feet on the kickstand and actual slate also help with the overall stability on a desk, even if they’re not that grippy.
I found the Switch 5 uncomfortable to use on the lap though, where the kickstand constantly pushed the screen back towards its default position even with the slightest of my moves, and I had to continuously press it back to the desired position. As far as using it when leaned on the sofa or in bed, well, I found it pretty much impossible to use this way. There’s are videos on Youtube that better show how this kickstand works.

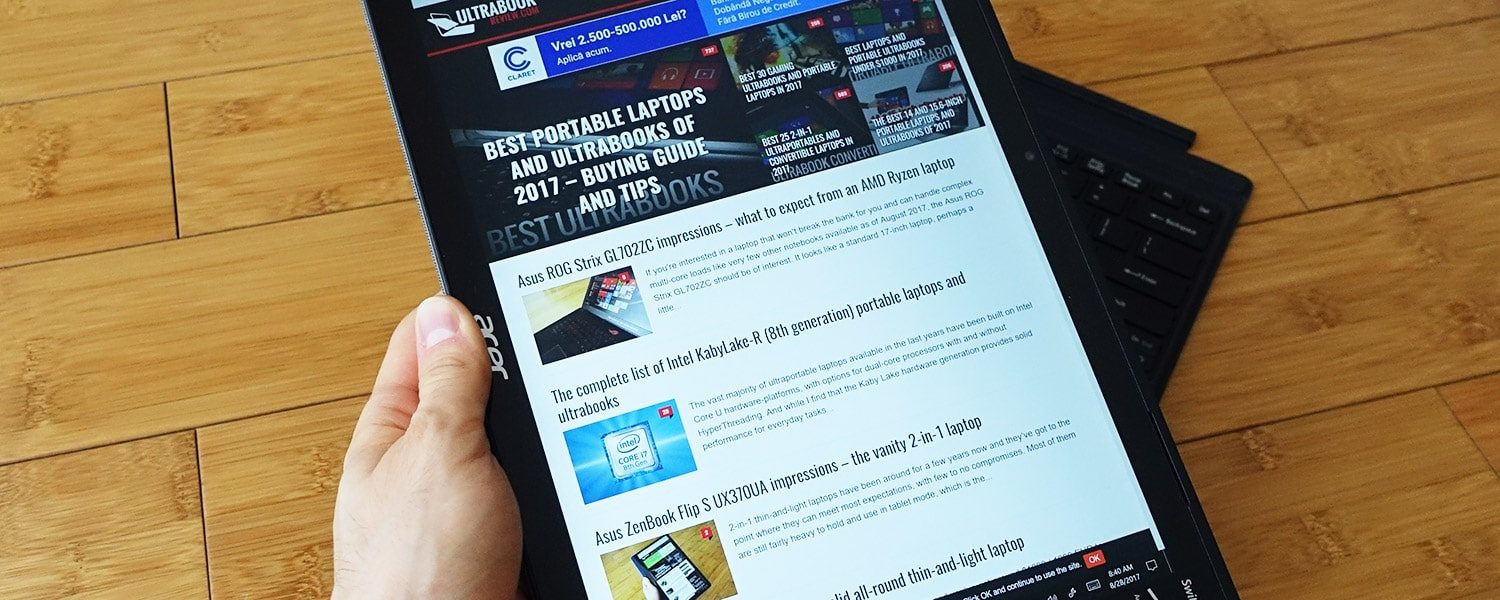

As a tablet the Switch 5 is also fairly nice, even if it’s marginally thicker and bigger than other options. It also gets a marginally smaller screen, which translates in fairly thick bezels, but at least it’s sturdily built. The screen includes a digitizer and pen support, and we’ll talk about them in a further section.
All in all the Switch 5 is a well built and nice looking hybrid and makes for a good laptop and tablet in most scenarios. I’m not a fan of the kickstand’s design though, I much prefer the mechanisms on the Surfaces.

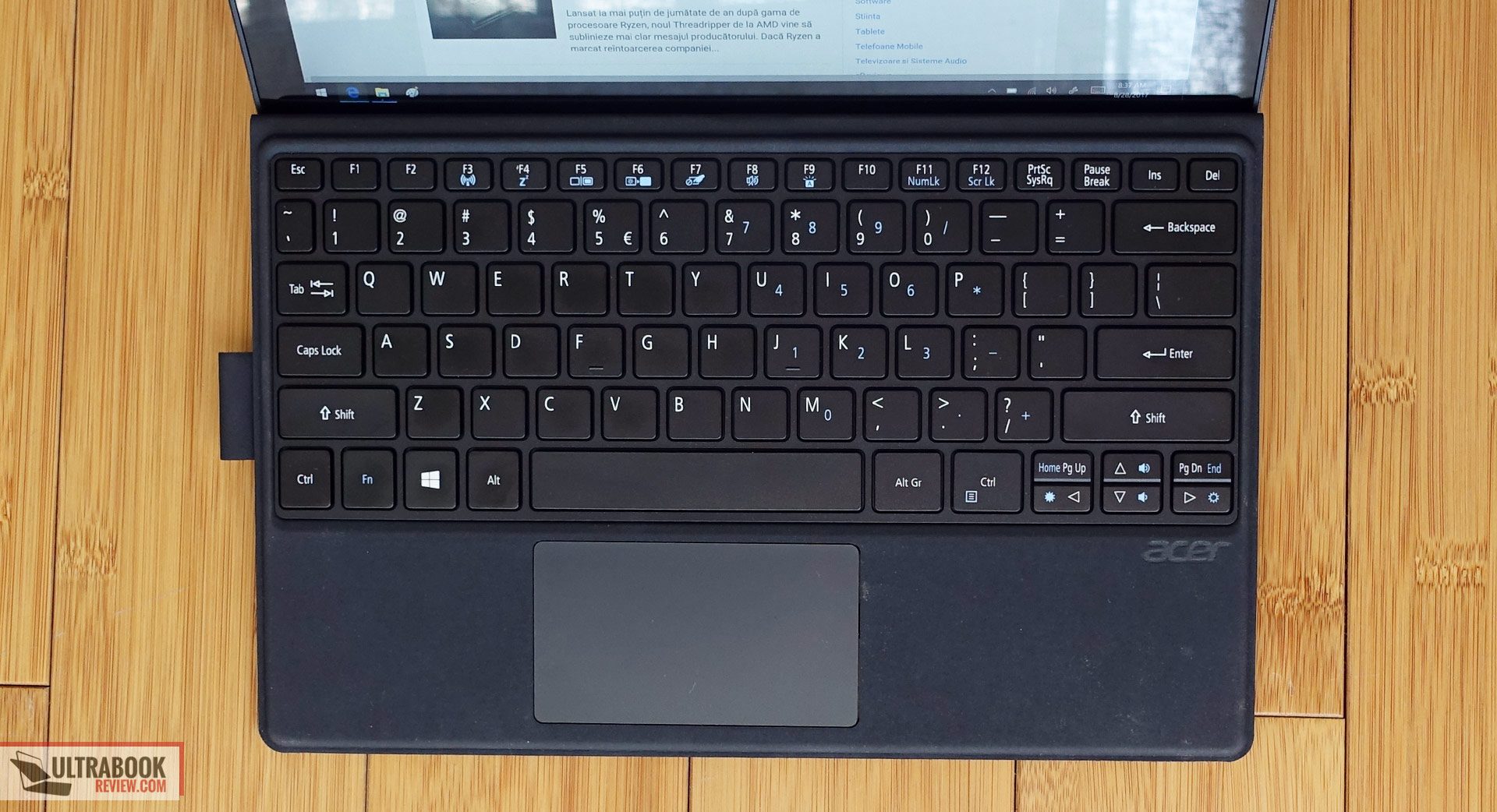

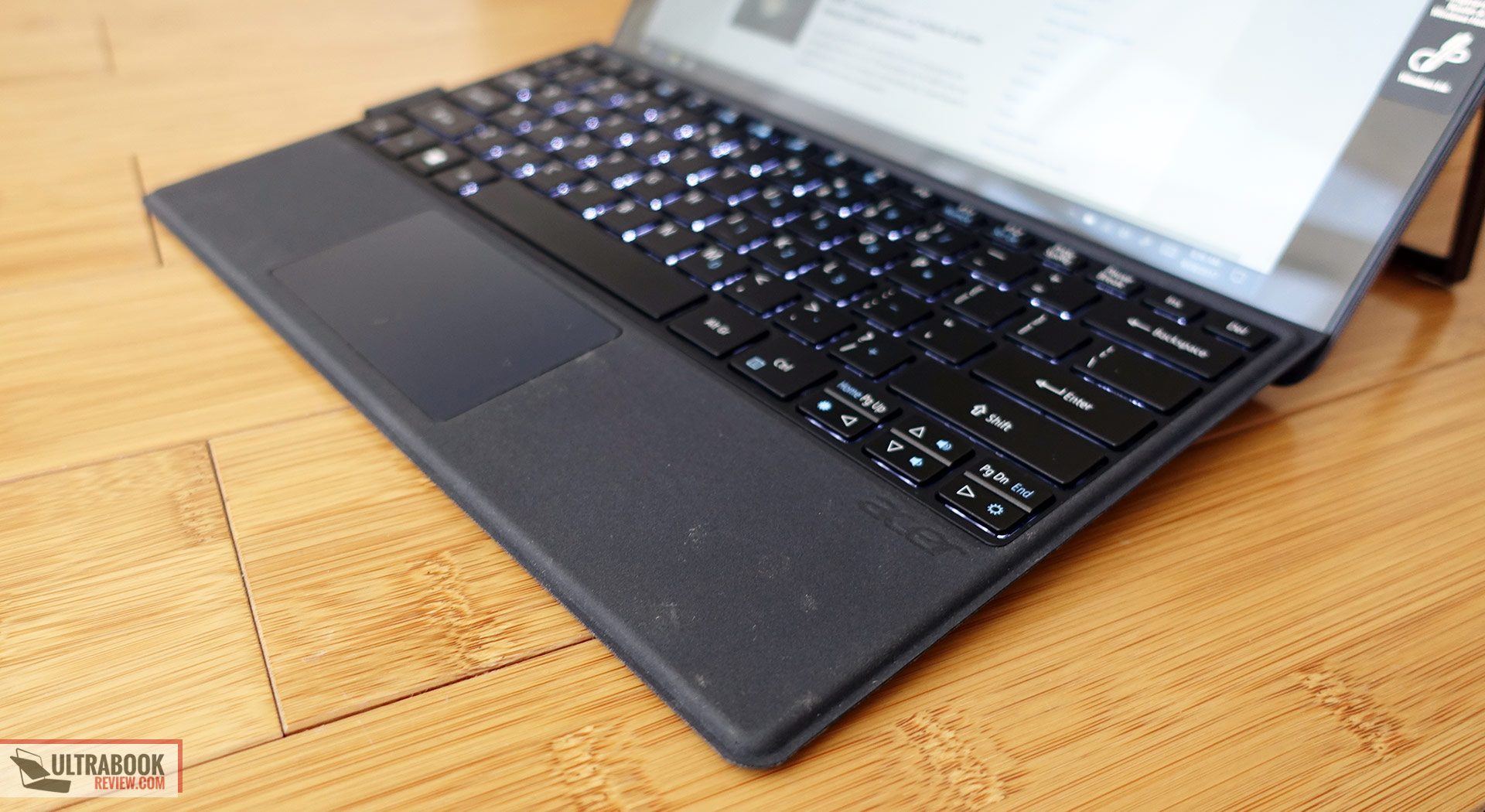

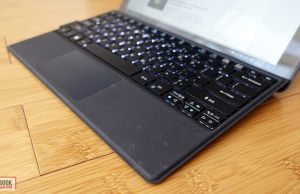

As most other devices with the same form-factor, the Switch 5 gets a keyboard folio. It looks and even feels a lot like the folios on the Microsoft Surface Pros and Asus Transformer Pros, with a felt-like finishing and plastic inner chassis. Our unit came in gray and I’m not sure if Acer plans to offer it in other colors as well. The felt finishing feels alright to the touch, but I can’t tell how it’s going to age and whether it will wear-off after a while.

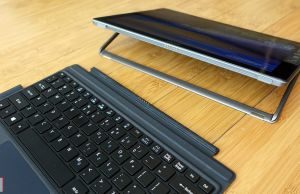

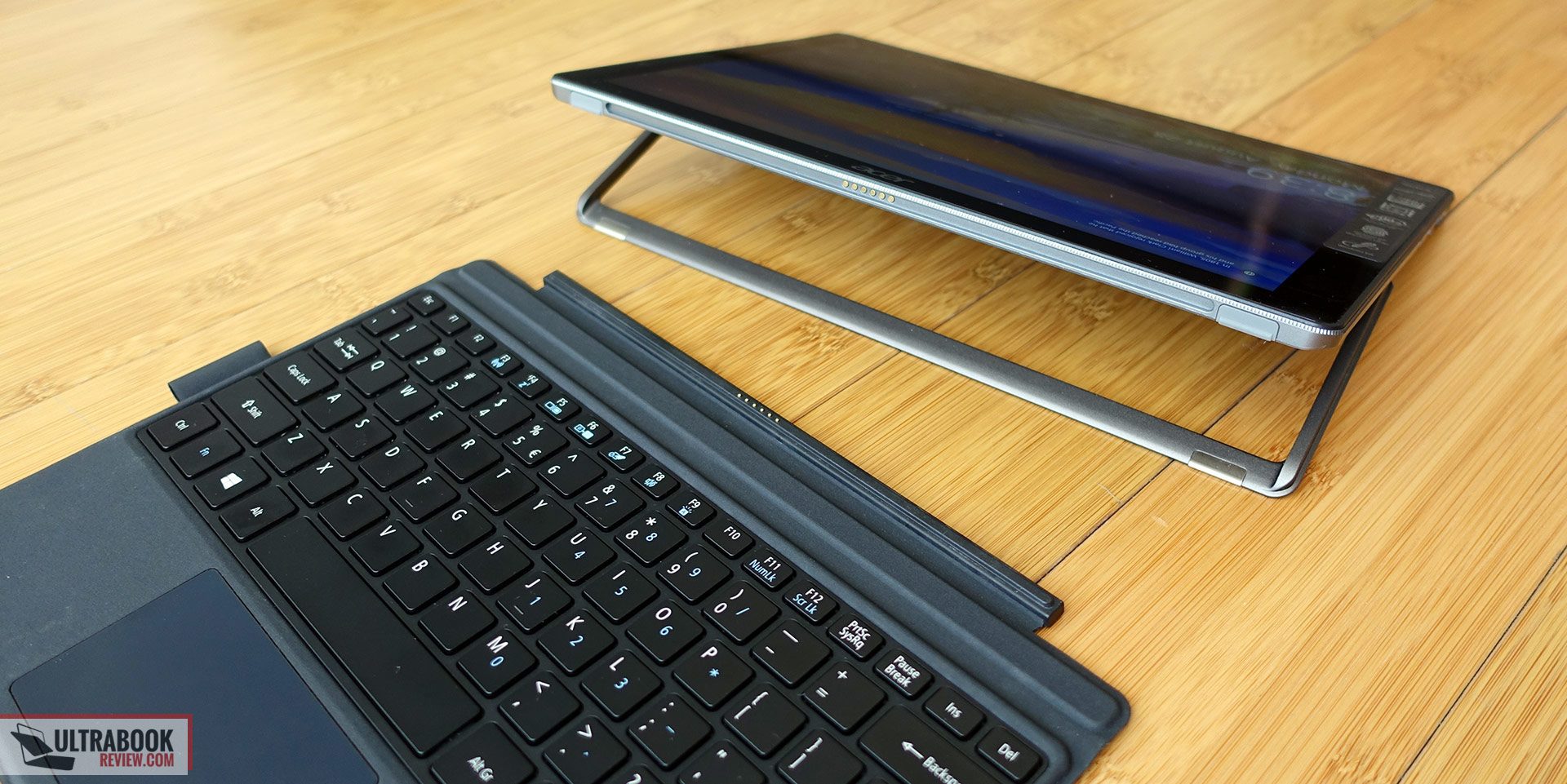

The keyboard attaches magnetically to the tablet and only works while hooked up, as it’s powered by the slate itself. It can be set-up in two positions, completely flat on the desk or slightly raised, for a slightly inclined and more ergonomic typing position. Both are standard options on all the existing detachables with keyboard-folios.

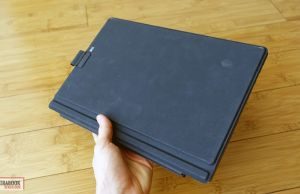

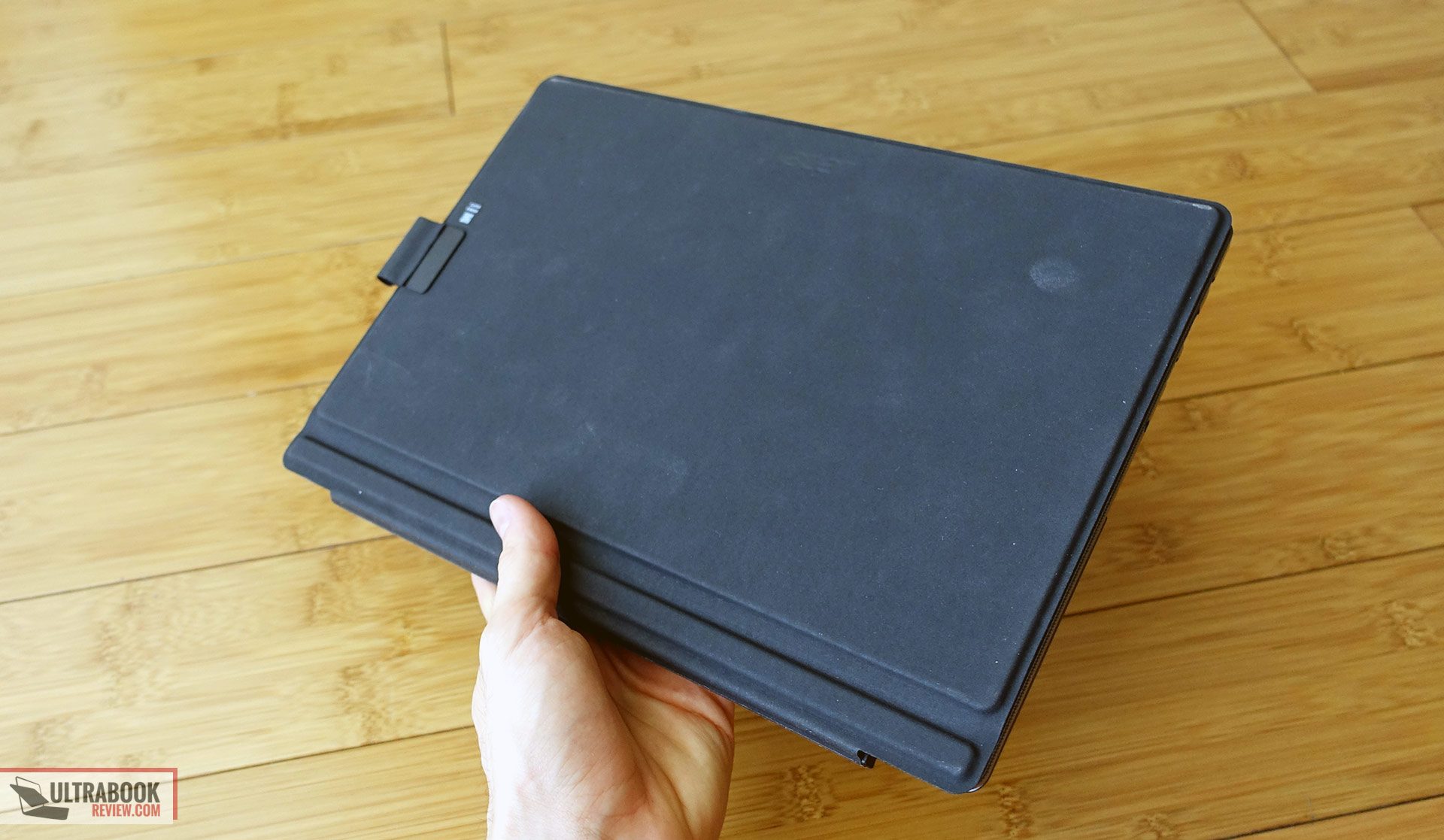

The folio is made out of plastic and is also fairly thin and light, so there’s no surprise it flexes a bit in the raised position. Despite this, the typing experience is surprisingly good.

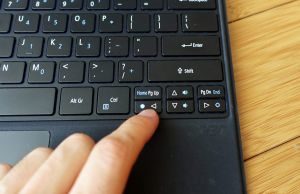

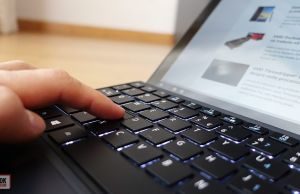

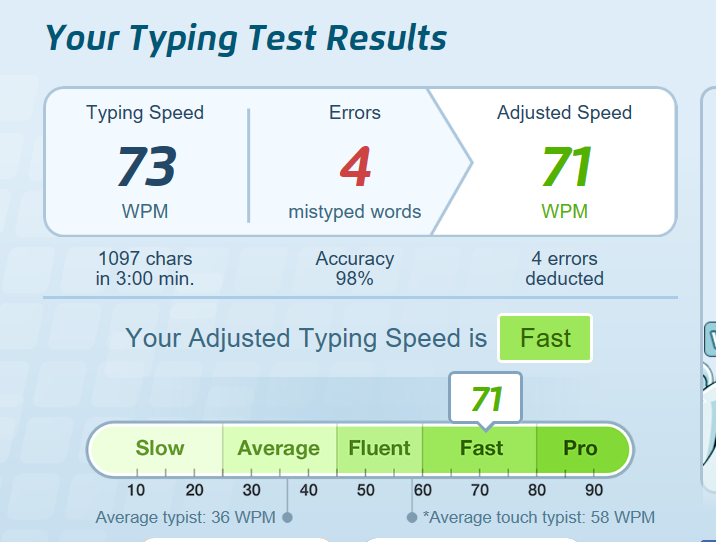

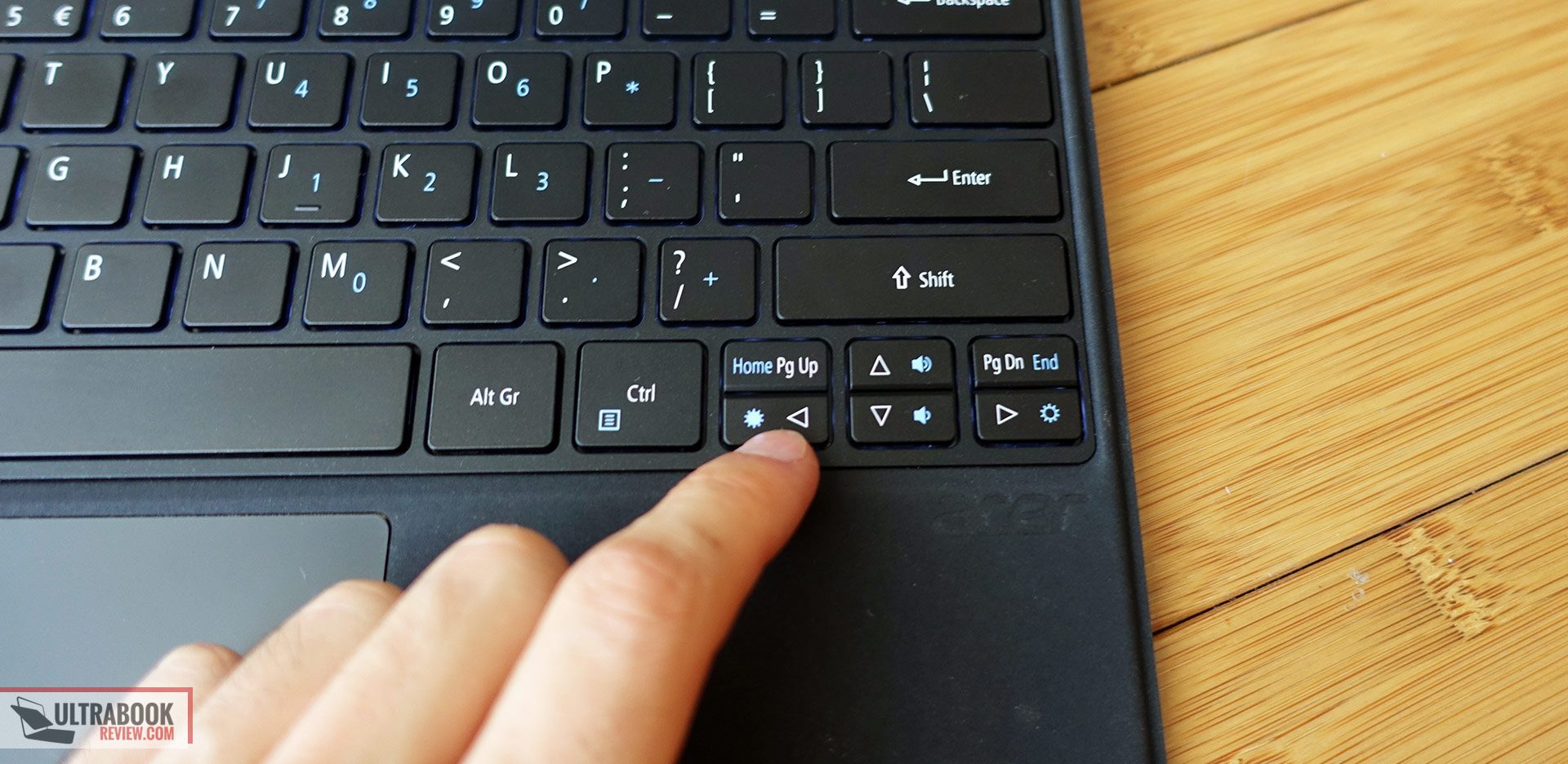

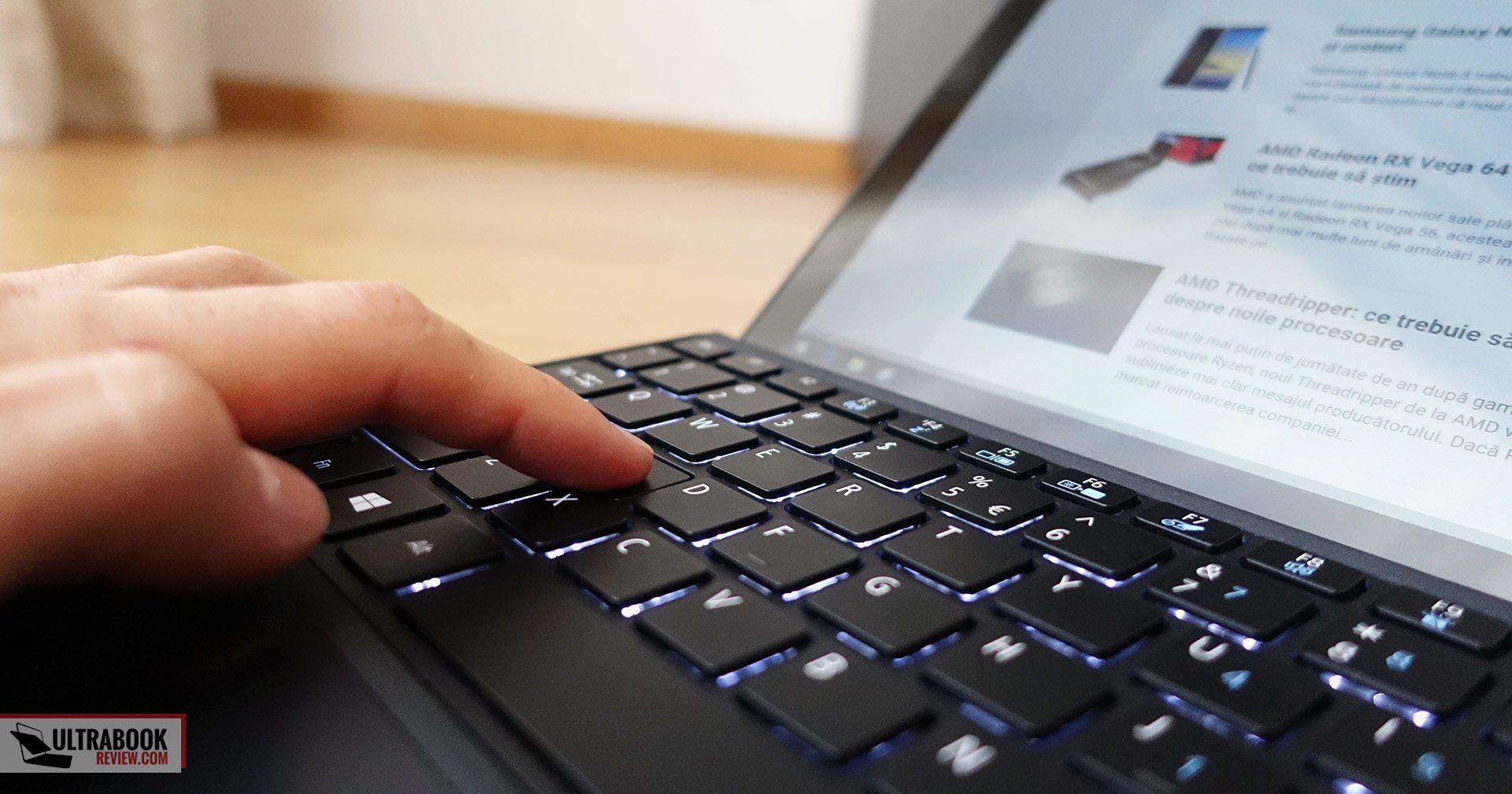

The keys have the right response and feedback, even when pressed on the sides, and there’s none of that spongy feedback I’ve encountered on the older Alpha 12. This is still a short stroke keyboard and not the fastest to type on either, but for me it proved to be one of the most accurate I’ve got to try lately.
The keyboard is also backlit, but the keys only light up when pressed and not while swiping fingers over the clickpad.

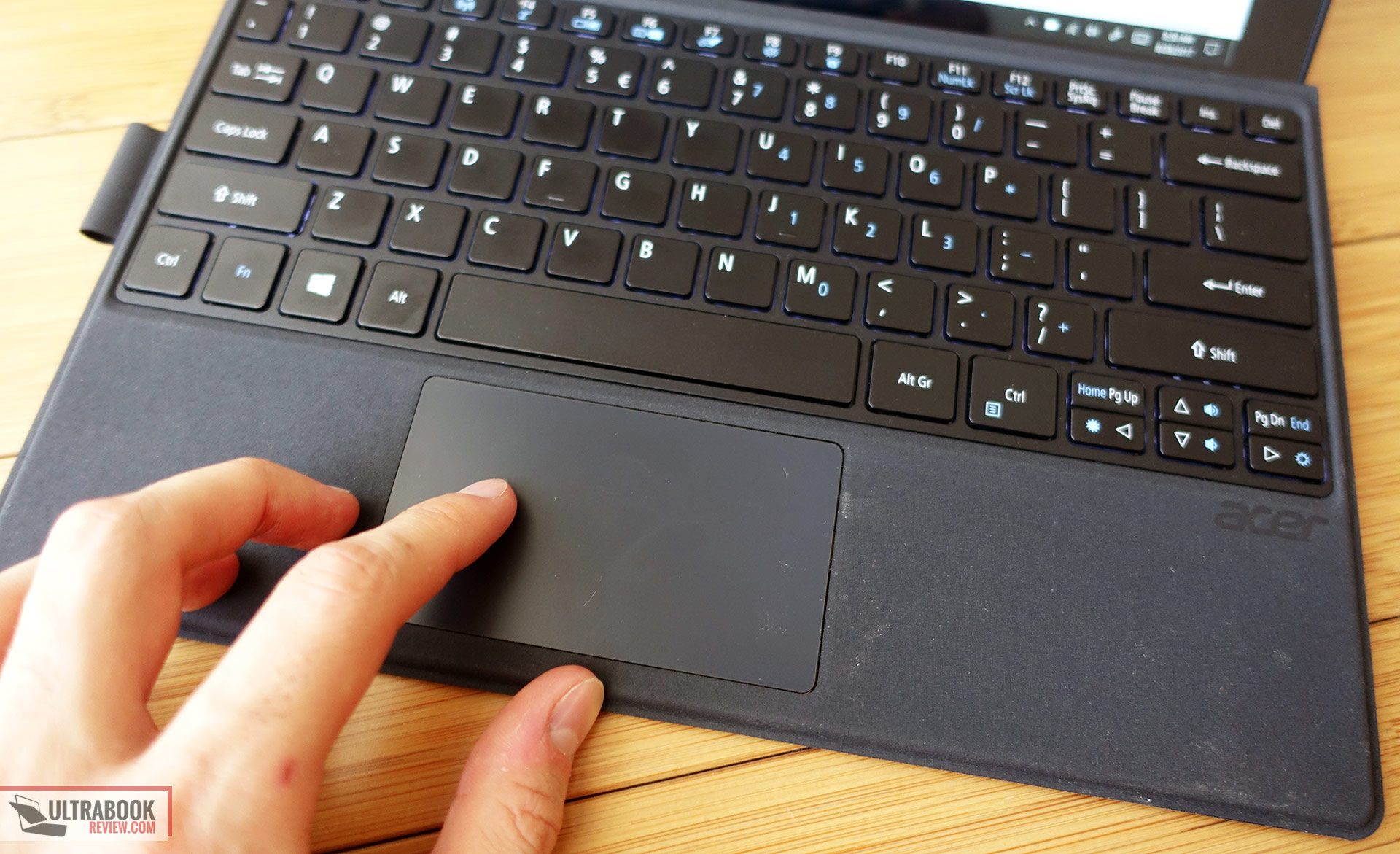

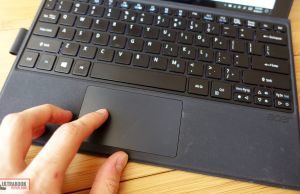

Speaking of it, the clickpad is rather small and made out of plastic. It is however a Microsoft Precision surface and works fairly well out of the box. I found it a tad slow for my liking, which can be addressed from the settings, and I’d say that its responsiveness with very precise swipes could also be improved, but these aside I have nothing to complain about. I also didn’t run into any issues or noticed any quirks during my time with the computer.

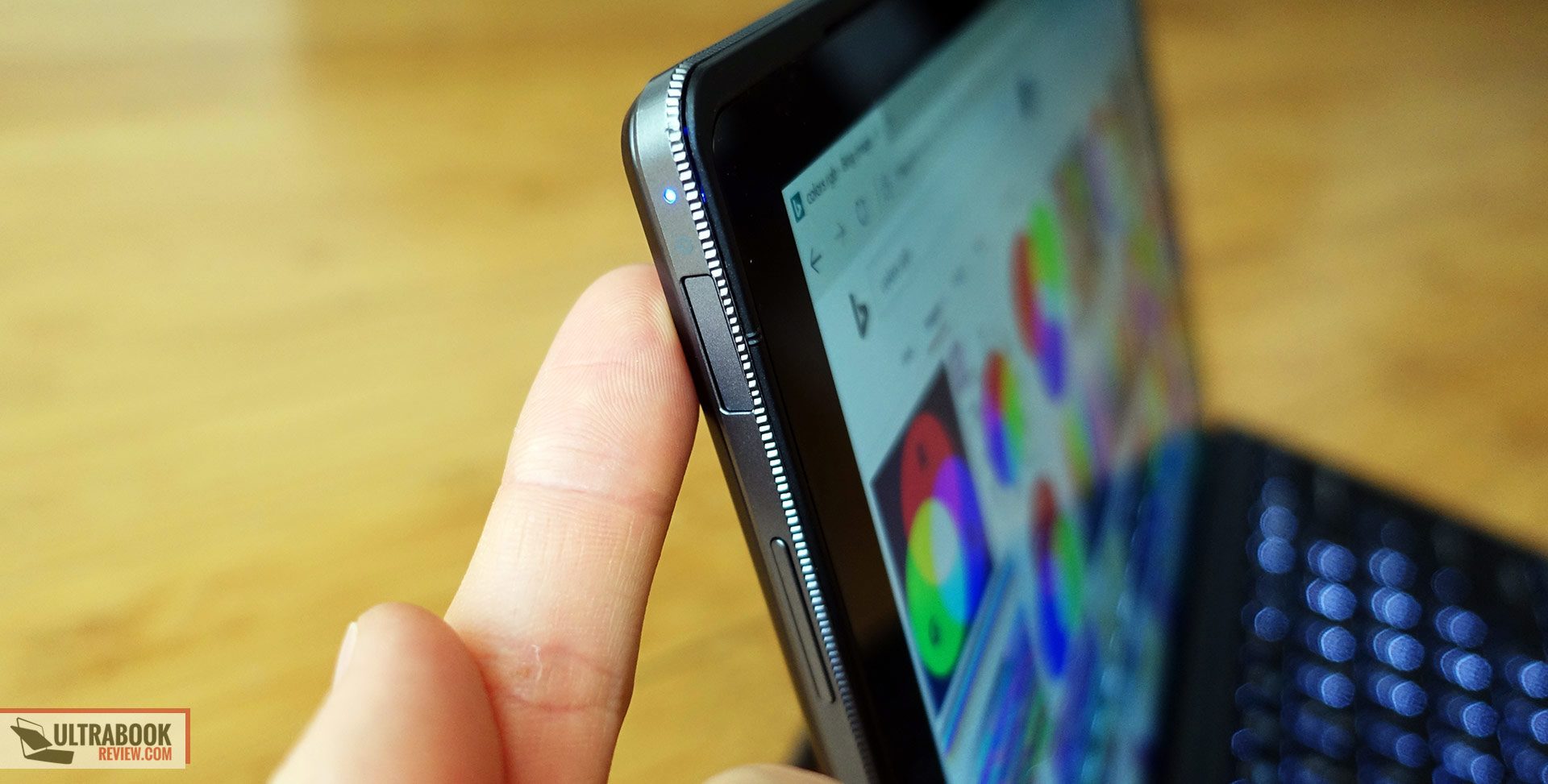

The Switch 5’s physical Power Button also doubles as a finger-sensor, and works alright with Windows Hello. It doesn’t always register the print from the first try though, so the experience of logging in is not as seamless as on other devices with finger-sensors.

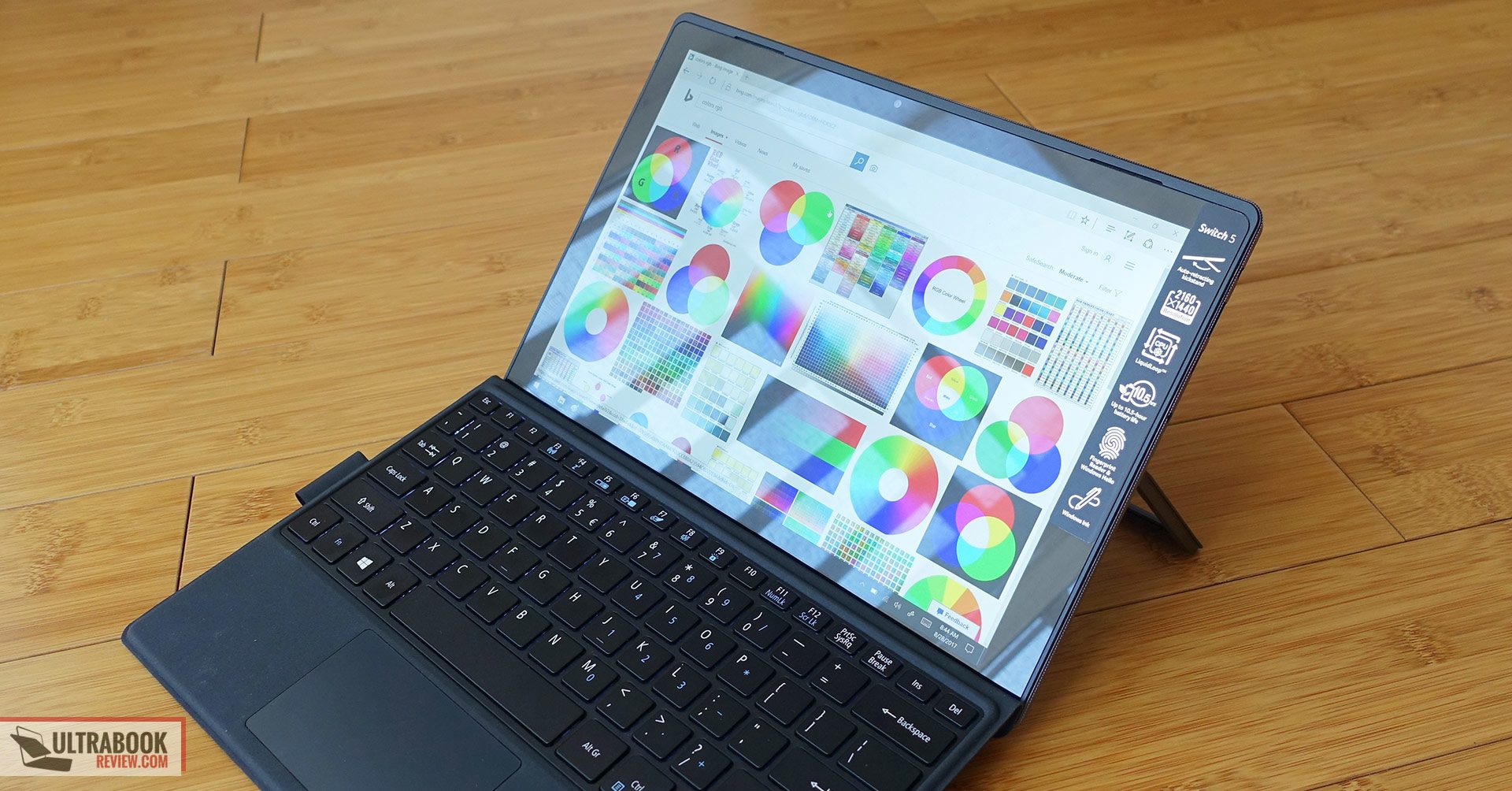

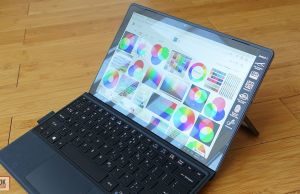

I’ve read a few other reviews of this Switch 5 and all of them critique its screen. Yes, it’s not as bright, as uniform, as color accurate or even as sharp as the panel you’ll get on the Surface Pro 5, but I fell that it’s not that bad either.

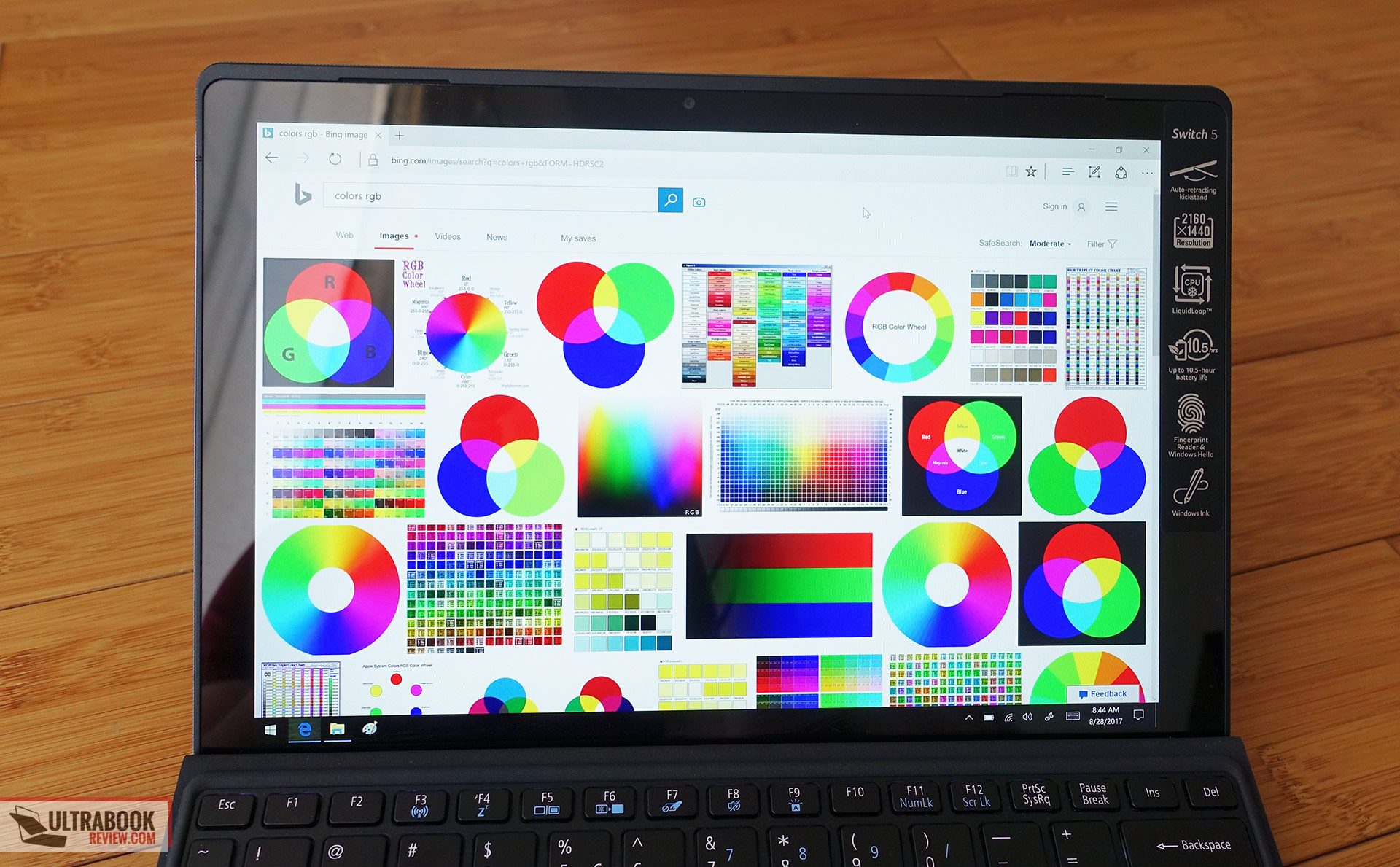

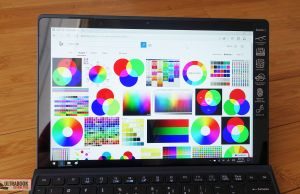

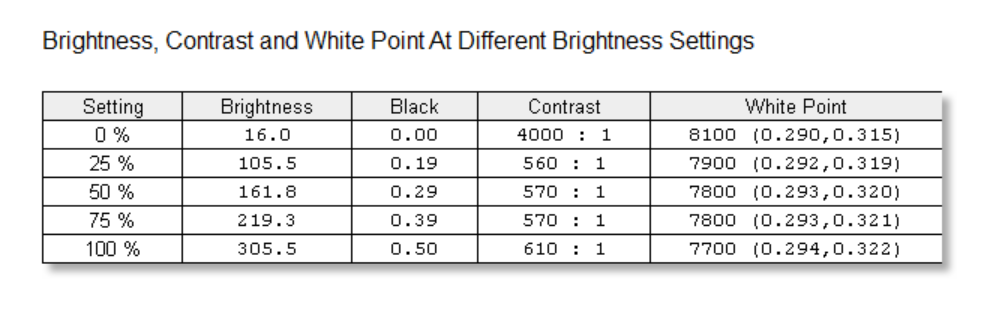

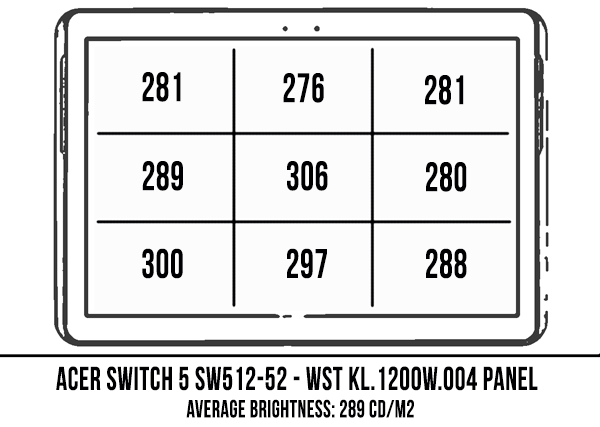

Acer went with a 3:2 12.0-inch screen and an IPS panel made by WST (code name KL.1200W.004), with a resolution of 2160 x 1440 px. It’s sharp enough for this screen size and the slightly lower resolution actually pairs nicely with the hardware inside and helps with battery life to an extent. You’ll find more about this panel in the data and pictures below:

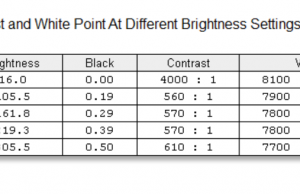

Panel HardwareID: WST (KL.1200W.004);
Coverage: 95% sRGB, 66% NTSC, 71% AdobeRGB;
Measured gamma: 2.3;
Max brightness in the middle of the screen: 306 cd/m2 on power;
Contrast at max brightness: 6410:1;
White point: 7700 K;
Black on max brightness: 0.50 cd/m2.

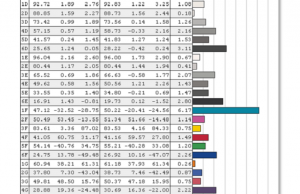

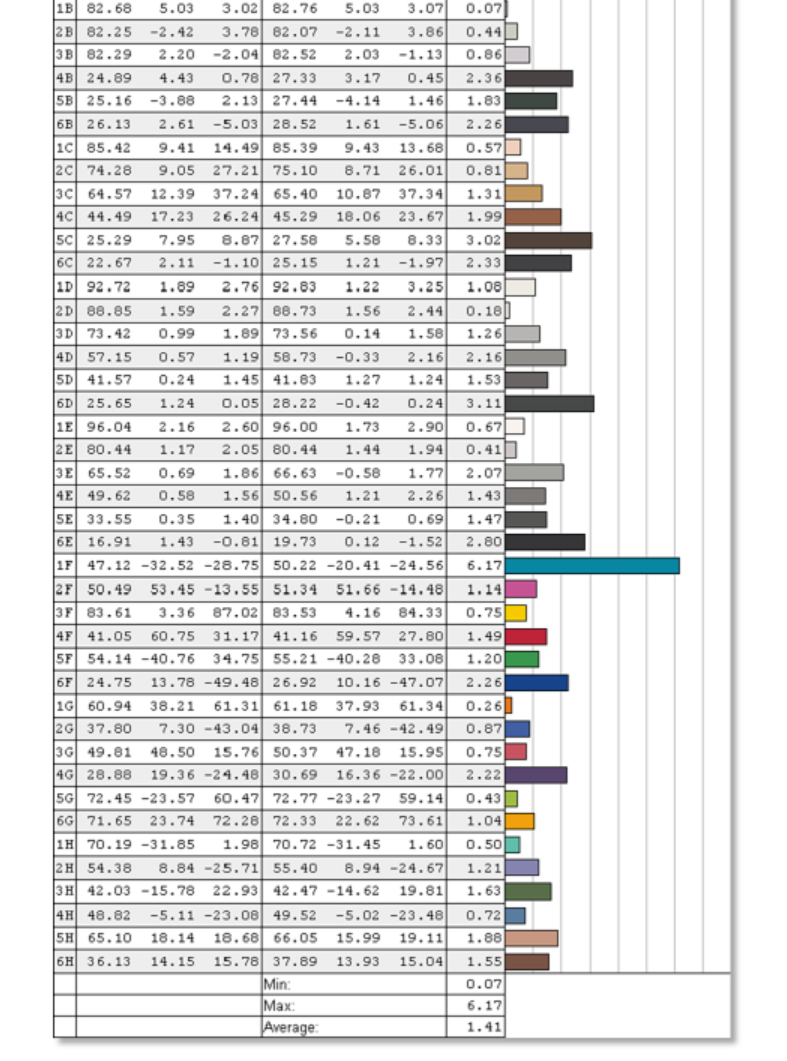

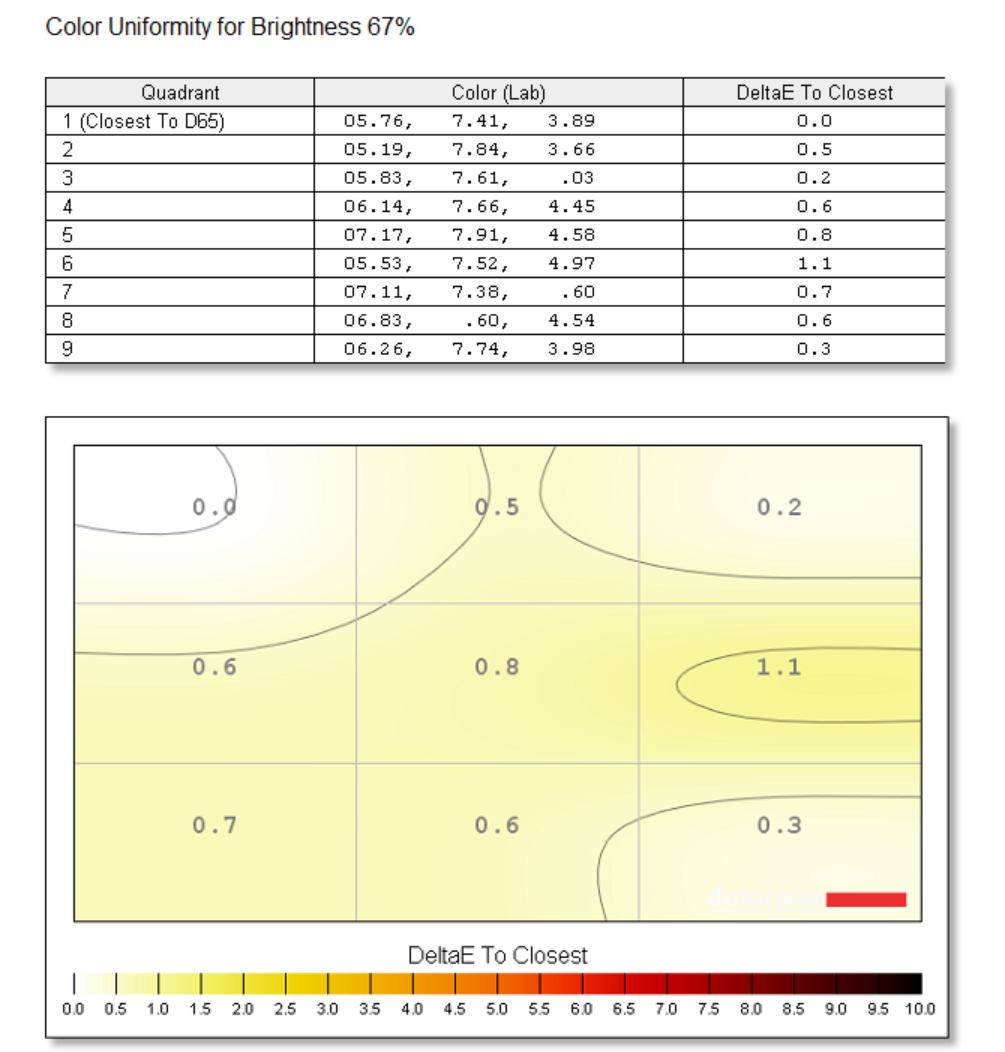

The colors are nor very accurate, nor that skewed either. Unfortunately our calibration didn’t seem to do much in terms of DeltaE correction, but can help normalize the gamma and white point skewages. You can
find it here if you want to give it a try.

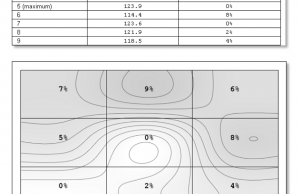

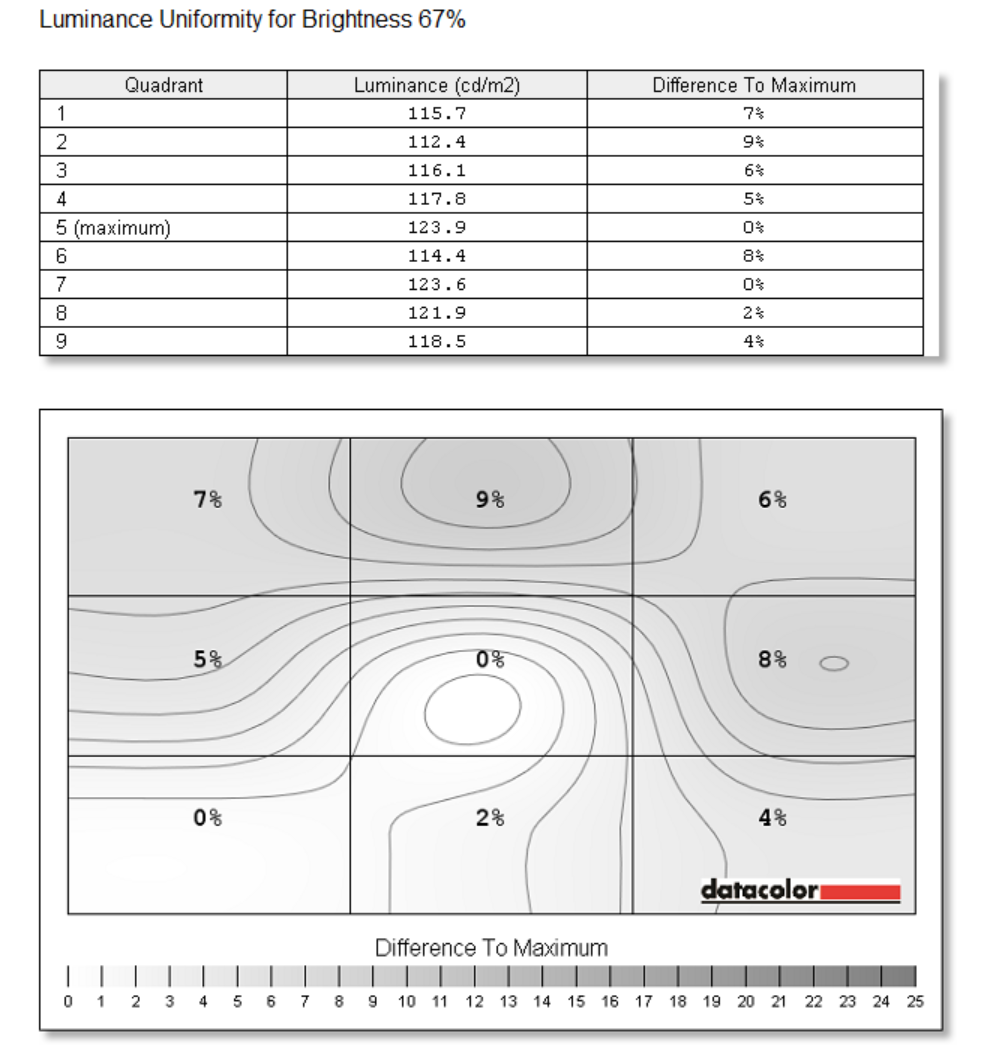

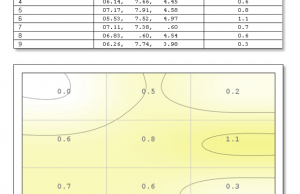

I didn’t get any obvious light bleeding on my sample, but I’ve read some complains in other reviews, so you should be aware that uniformity can be a matter of luck with this device.
All in all, yes, you can get much better screens on other tablets out there, but given the Switch 5’s mid-level price, I’d say most of you should be fine with the panel Acer chose for this computer, as long as you don’t draw a short stick at the panel lottery and end up with bright spots or light bleeding. Make sure to buy from a place that handles returns well, just in case.

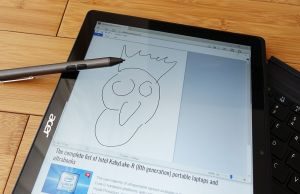

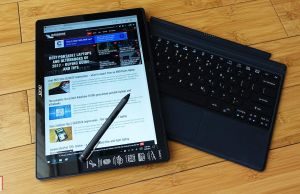

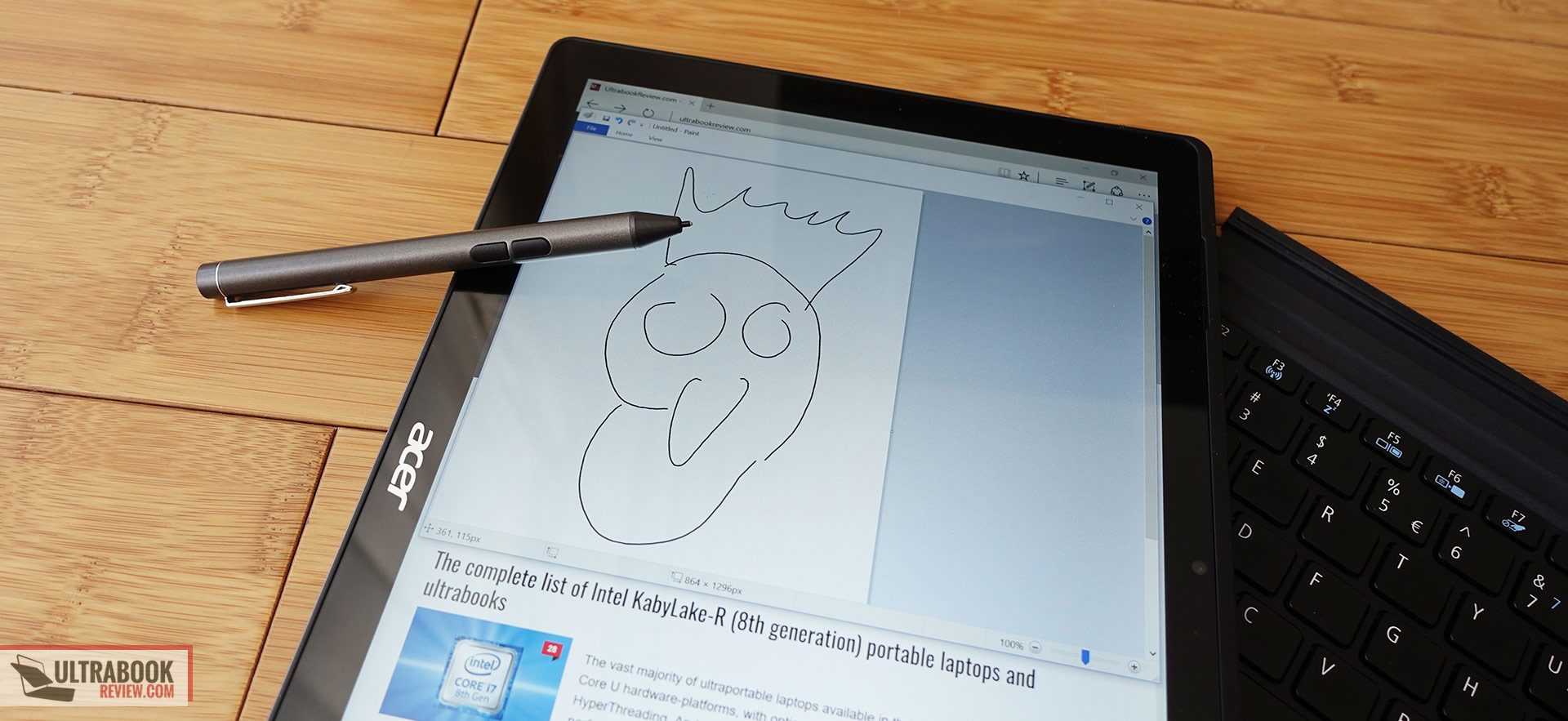

This screen includes a digitizer (made by ELAN, from what I can tell) as well and supports Acer improved Active Pen with 1024 levels of pressure sensitivity. It’s a powered pen that works with an AAAA battery and is included with the Switch 5. It’s not the same pen Acer bundled with the older Switch 12 Alpha, and as far as I can tell (and other reviewers confirm it too) it works smoother than the older model.

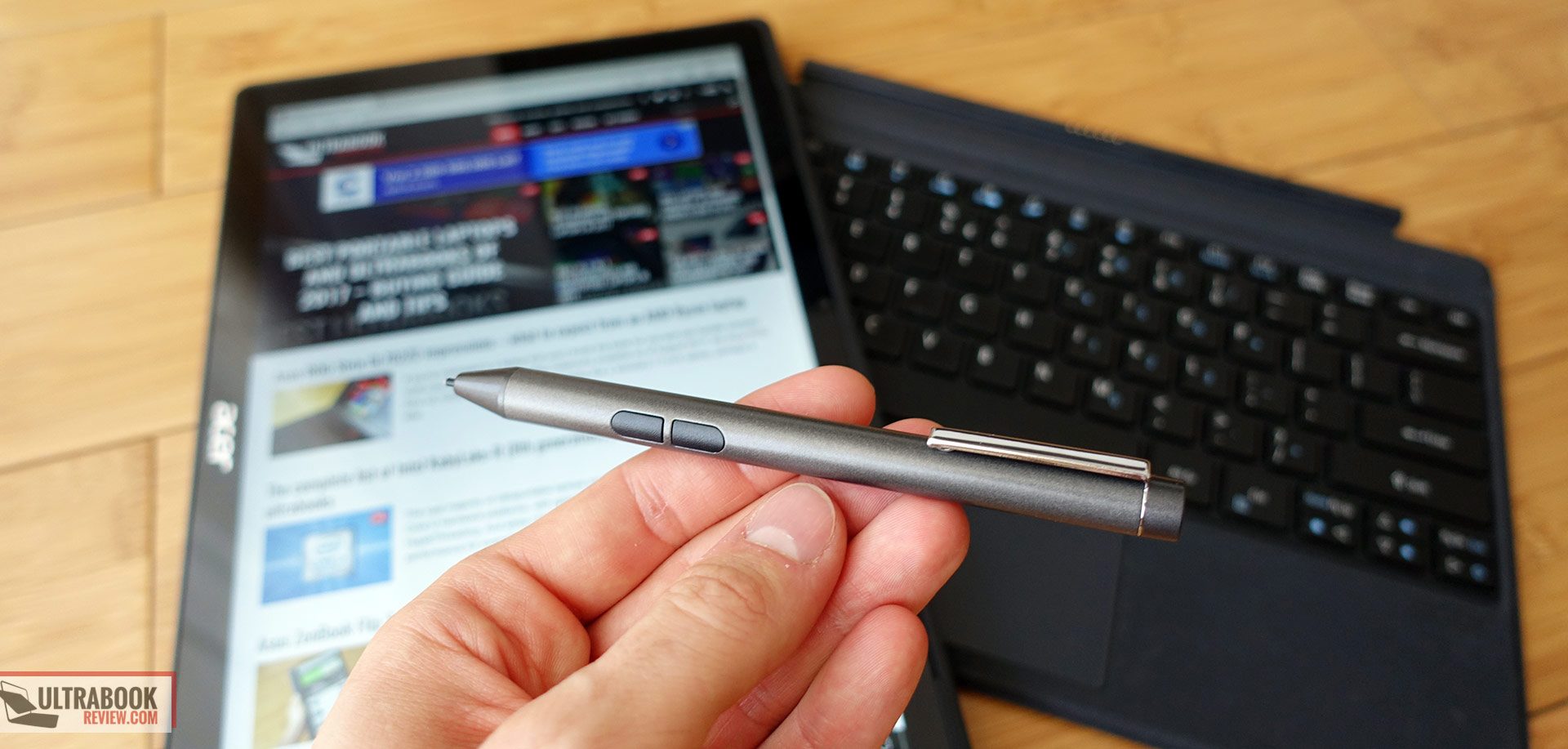

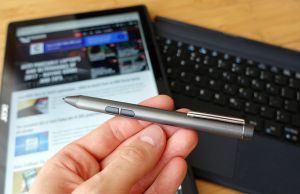

This pen feels nice in the hand and it’s light, well, as light as an active pen can be. You can hook it to a dedicated loop on the keyboard folio when not used, but there’s no way to store it inside the actual slate. My experience with pens is rather limited, as I don’t use them on a daily basis, but I found this one alright for sketching and decent for taking notes. Tracking can be improved, as I feel it could be quicker and more precise, but palm-rejection worked fine. Make sure to read other impressions as well, I’m not a go-to when it comes to pens and perhaps you can find opinions from people who actually take notes on a touchscreen on a daily basis.
I will also add that the pen on the Surface Pro 5 feels more accurate and handles 4096 pressure points, and even with the NTrig digitizer on the latest Surfaces, the inking and drawing experience they provide is superior.
Hardware and performance

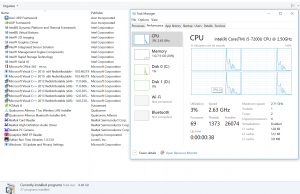

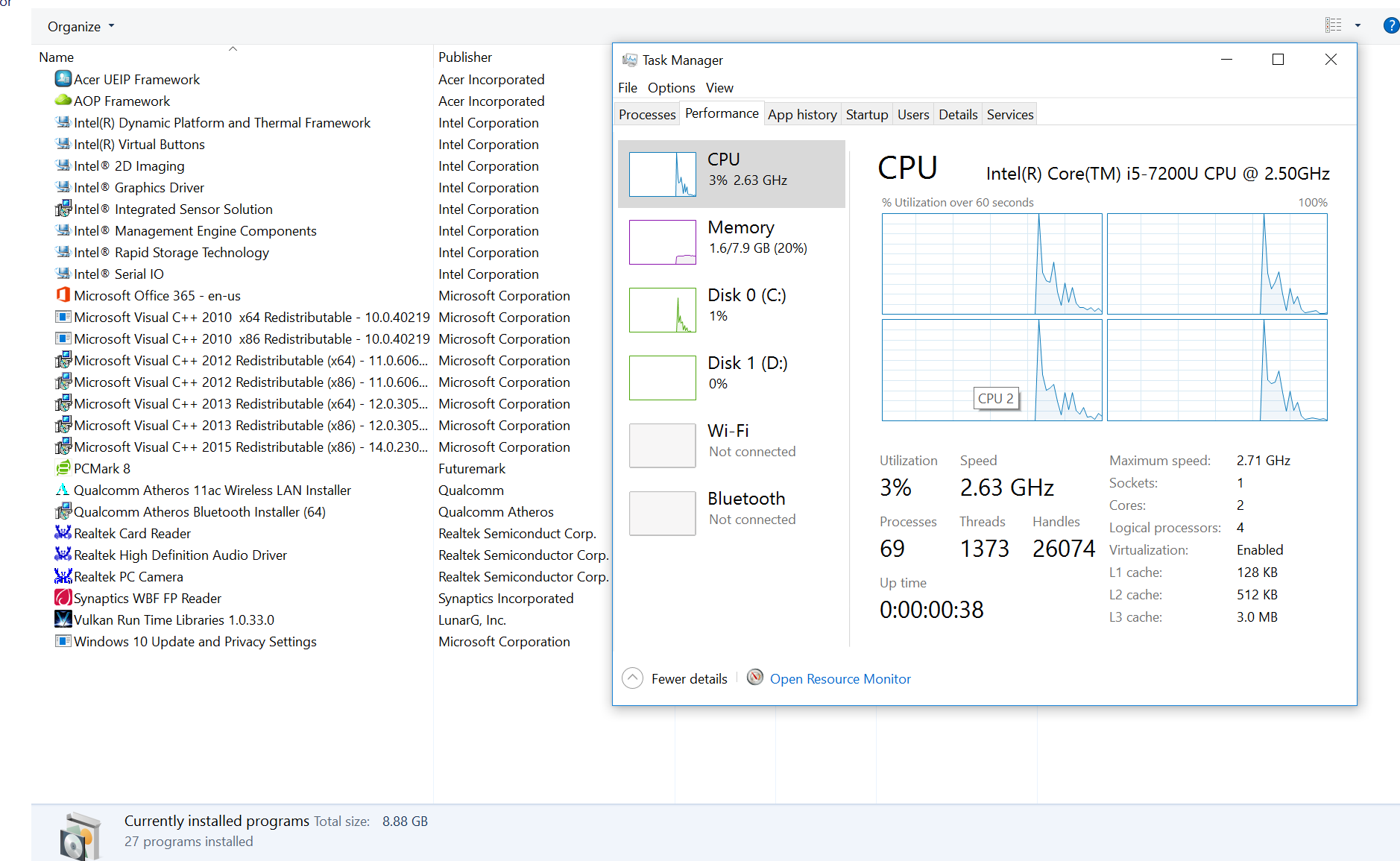

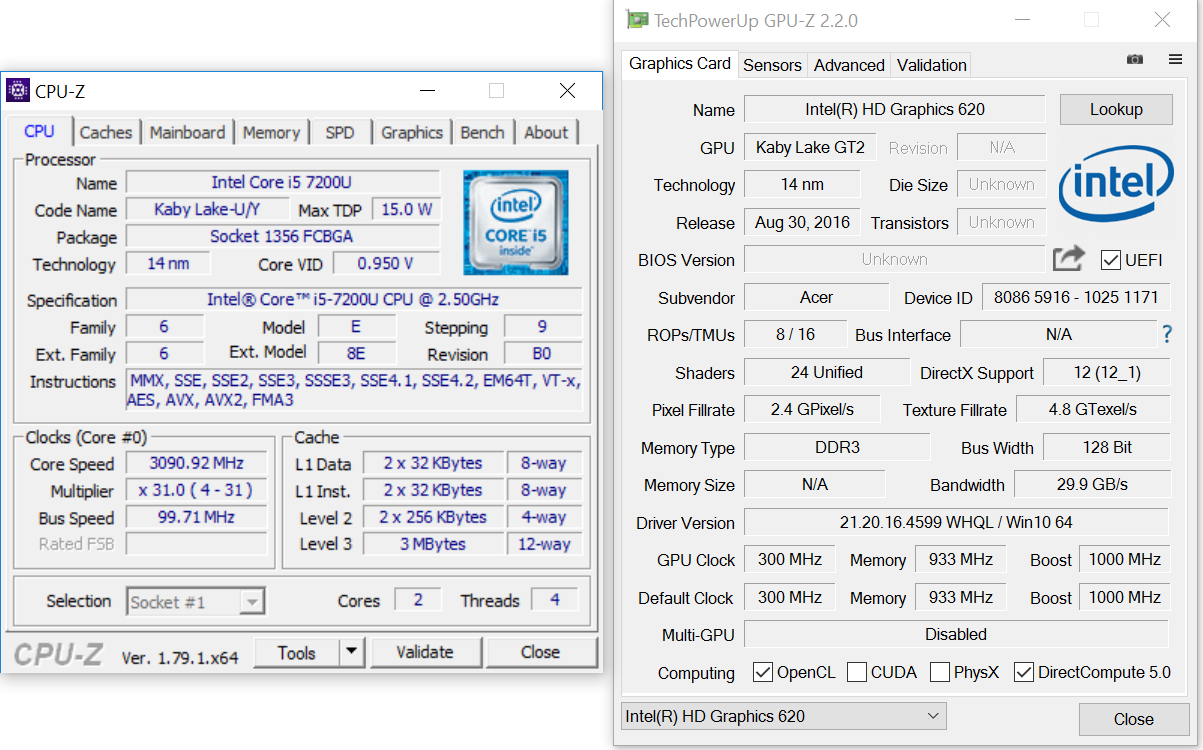

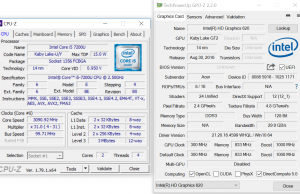

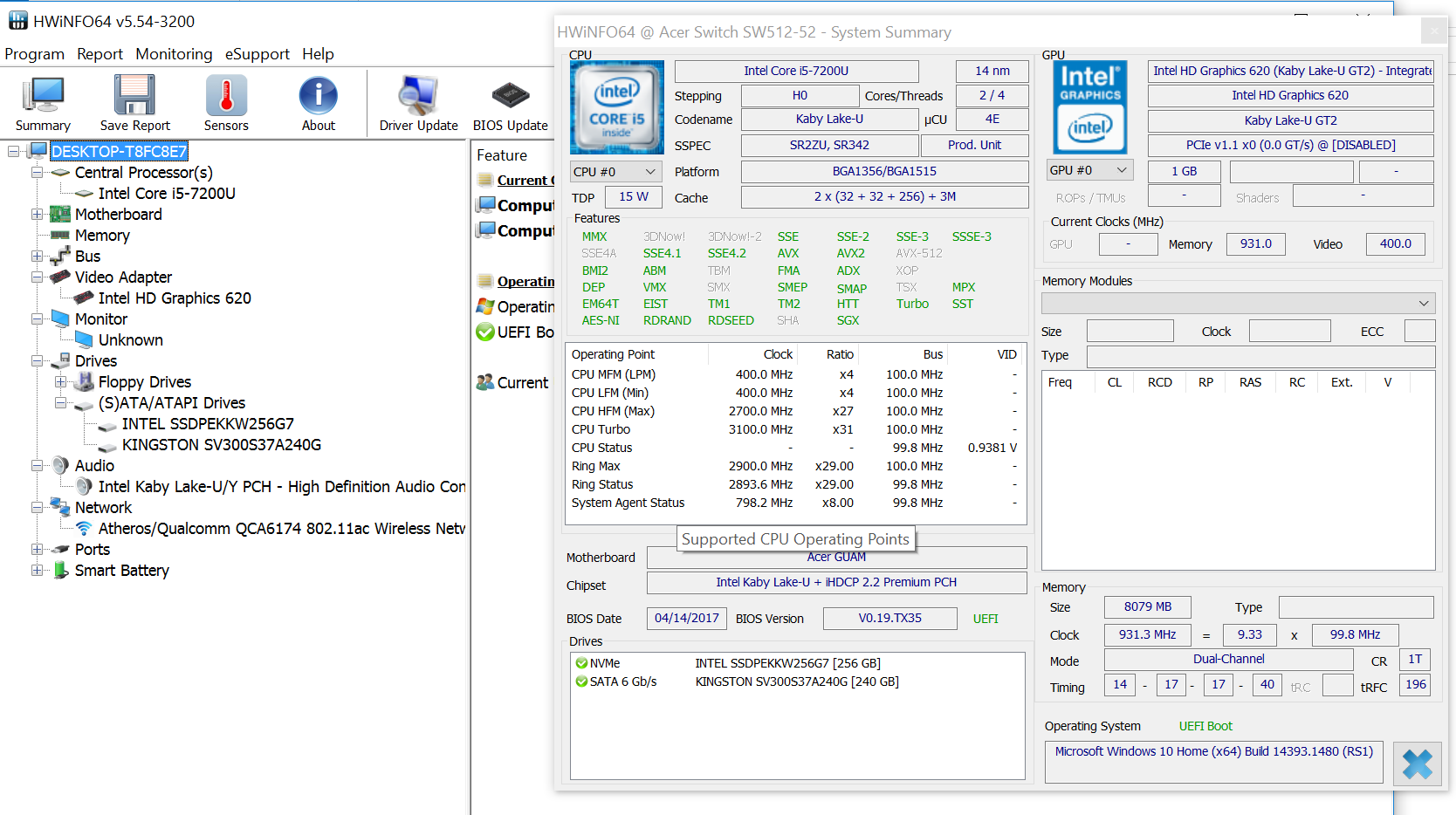

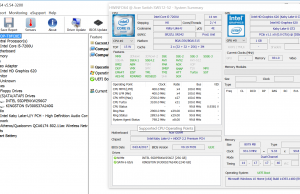

Acer sells the Switch 5 with either a Core i5-7200U or a Core i7-7500U processor, 8 GB of LPPD3 memory and an option for a 256 GB or a 512 GB SSD. We got to test the base Core i5 model which offers the better value for the money imo.

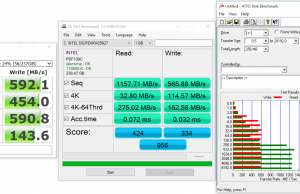

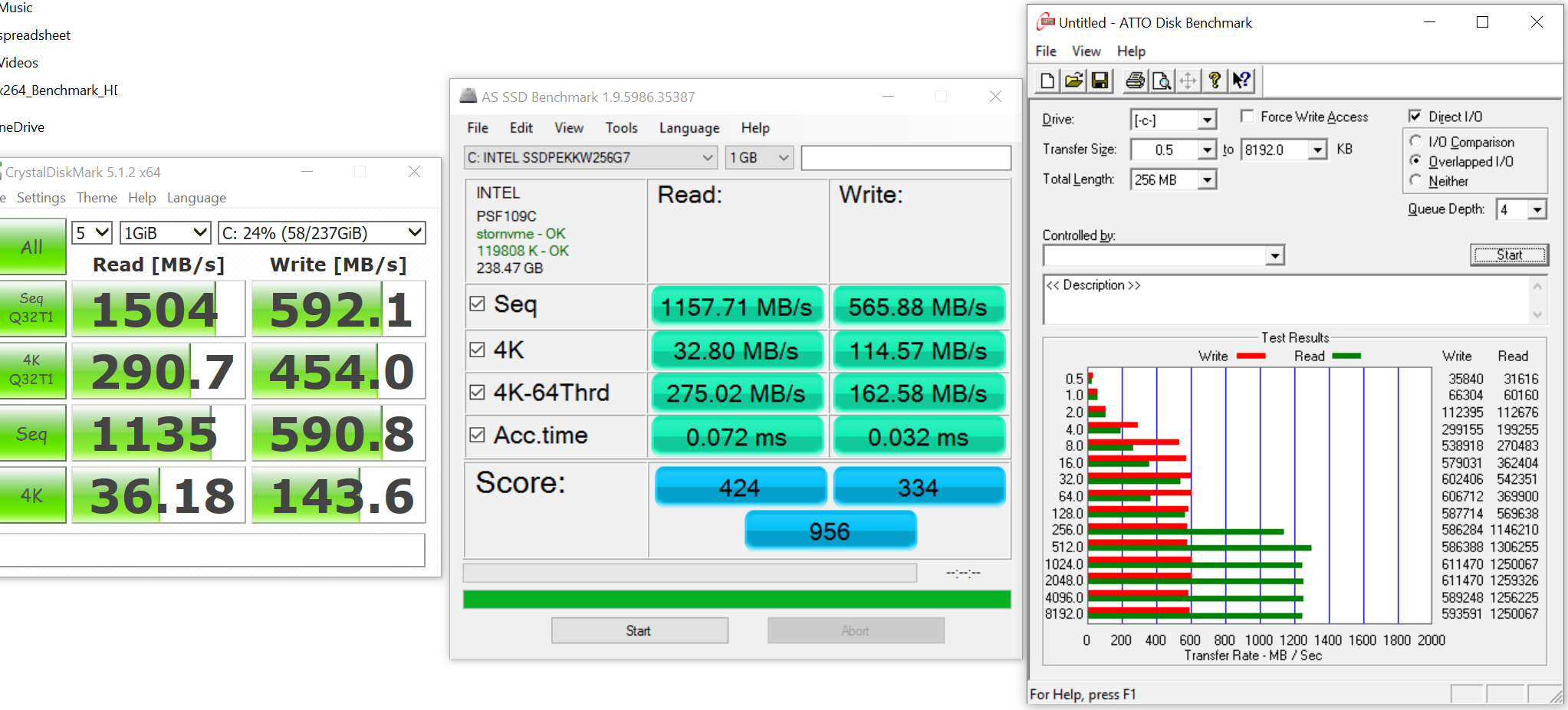

It came with a fairly fast Intel SSDPEKKW256G7 PCIe x4 SSD that it better than I would have expected for the mid-tier segment where this Switch 5 competes.
I suggest buying the configuration you need from the beginning, as getting inside this computer is more complicated than with a traditional laptop and most of the components are soldered. I didn’t open my sample, but the SSD should be replaceable with a compatible M.2 80 mm drive in case you want to put a bigger one inside. Take this with a grain of salt though, I can’t confirm for sure it is replaceable since I didn’t get inside.
The dual-core i5-7200U processor is fast enough for everyday use (browsing, movies, music, texts, etc) and can handle multitasking well. It can also deal with more complex loads, like editing an image in Photoshop or perhaps playing a light game that can be handled by integrated Intel HD 620 graphics chip. However, let’s not forget this is a tablet with passive cooling, so it should come to no surprise that it can’t get the absolute best out the included hardware.

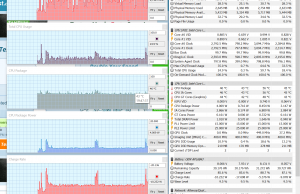

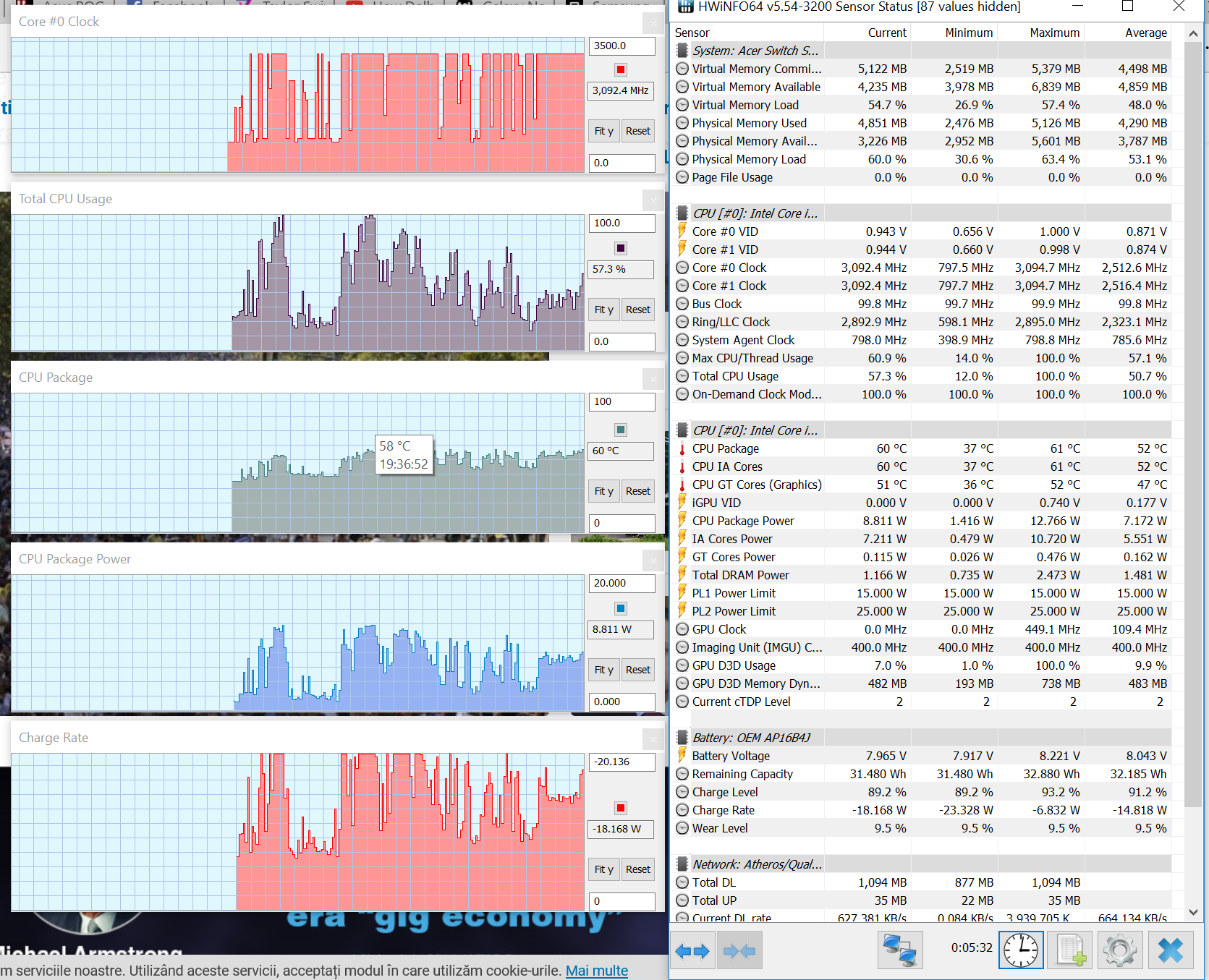

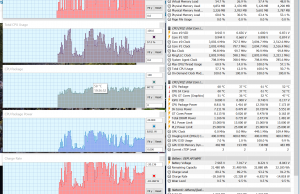

It’s very close though. The CPU runs perfectly fine with most daily tasks, without overheating or having any troubles in reaching its maximum Turbo Boost speeds. Details in the pictures below.

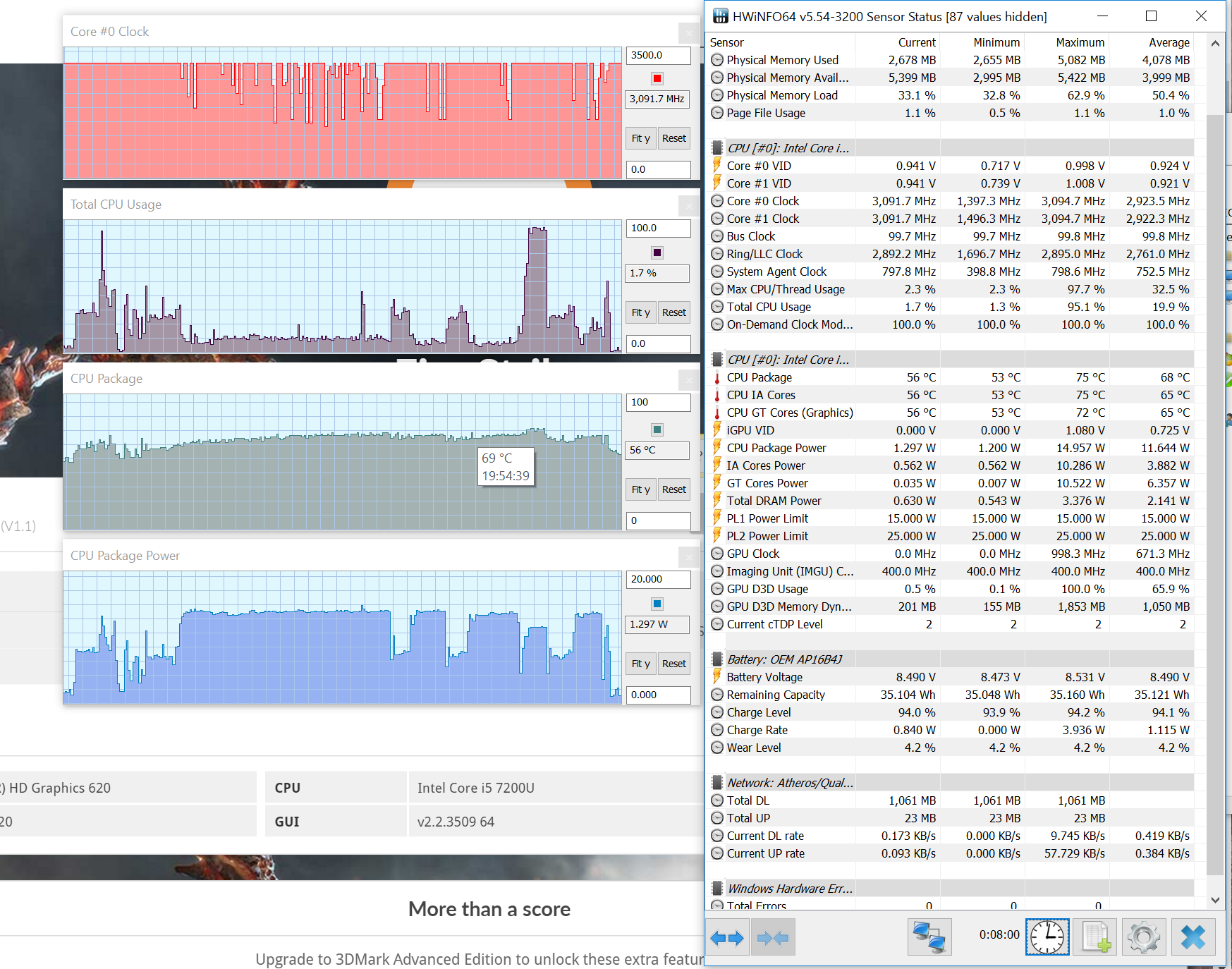

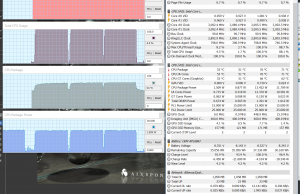

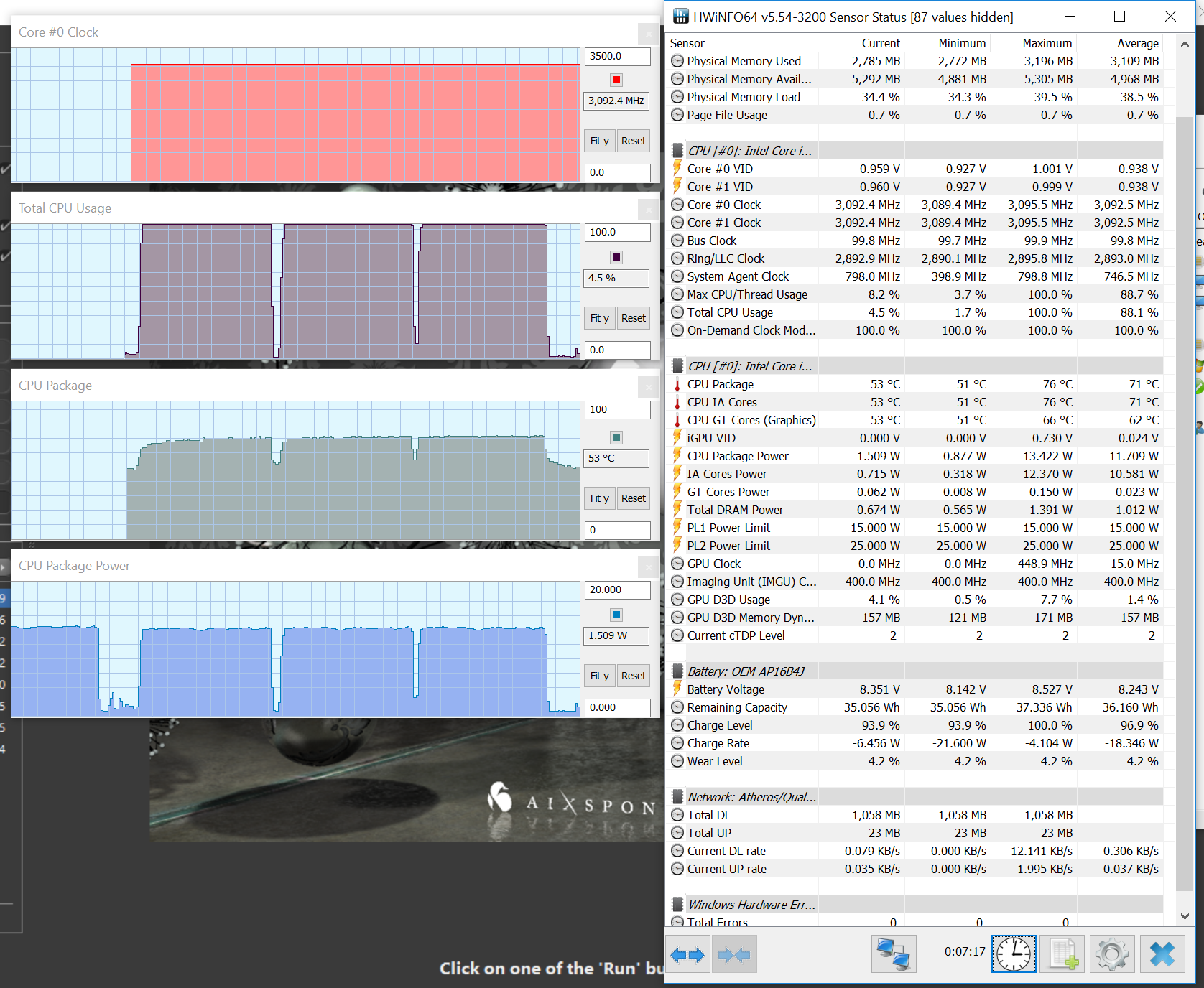

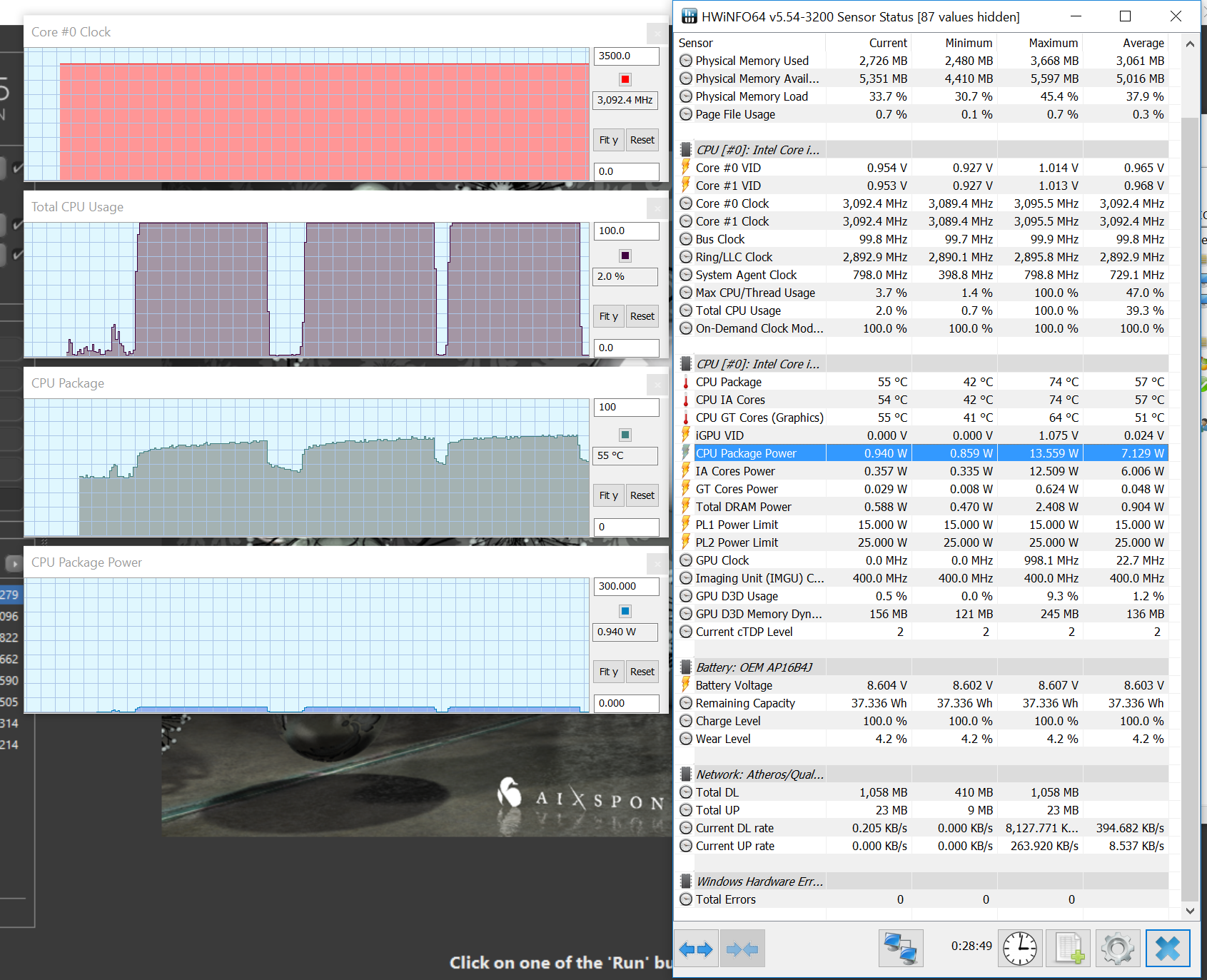

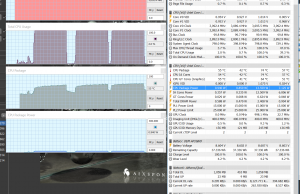

It runs fairly well in benchmarks too, with only slight drops of 100-200 MHz of its Turbo Speeds noticeable with Cinebench (which puts a 100% load on the cores), that I’d expect could be corrected with undervolting. I even ran Cinebench in a loop without noticing a change in behavior, so overall this Switch 5 performs much better than the passively cooled Surface Pro 5, whose performance drops significantly in similar continuous loads (

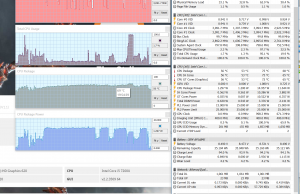

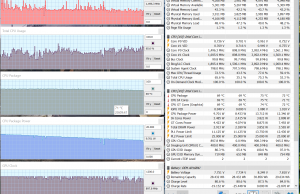

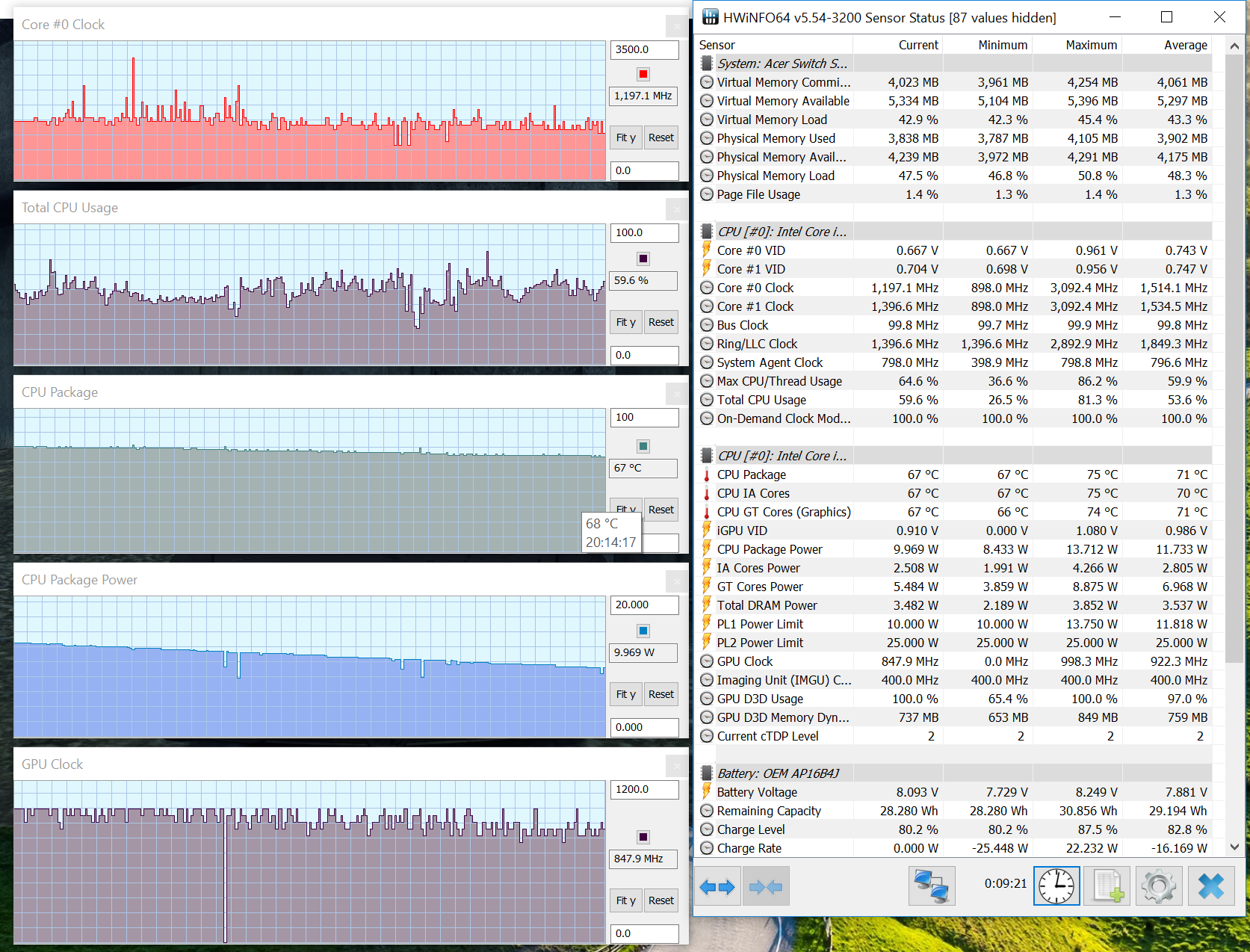

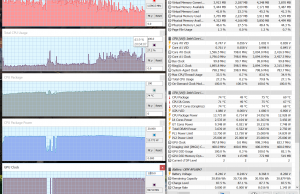

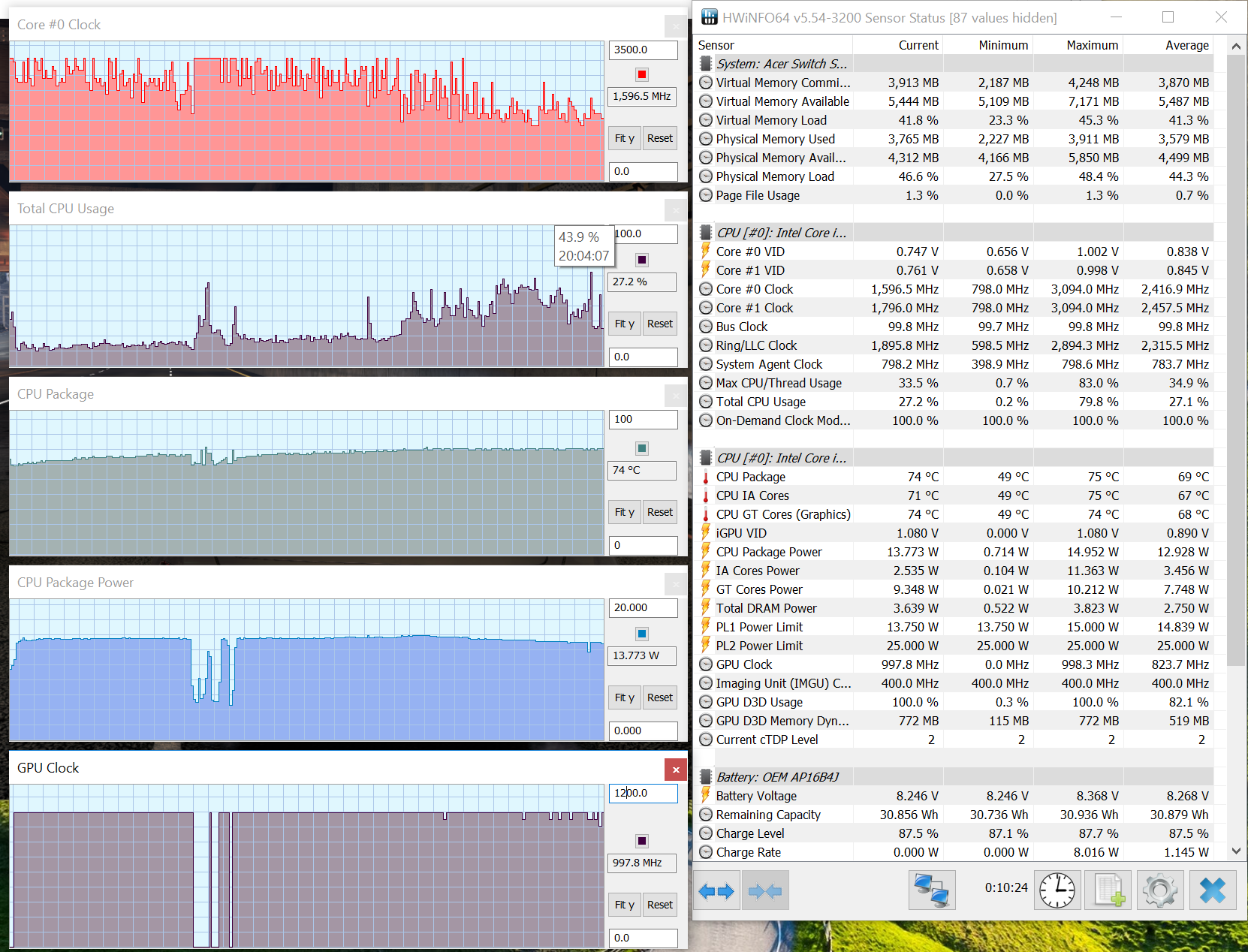

Performance with games is limited though, as Acer had to force the CPU to clock down in order to allow enough power for the GPU, while keeping temperatures at bay. The pictures below show that the CPU’s package reaches temperatures of around 70 Celsius while running games, which is much lower than its TMax of up to 100 degrees, but the performance degrades with time as the computer heats-up.
The heat spreads much easier to the components and case with this kind of fanless design and thin build, which is the main reason Acer were forced to limit the frequencies in order to keep temperatures at bay. Even so, this computer gets very hot under load, as you’ll see in the next section.
We ran some benchmarks as well, if you’re interested in the physical numbers.
3DMark 11: P1678 (Physics – 4030, Graphics – 1535);
3DMark 13: Sky Driver –3846, Fire Strike – 866, Time Spy – 341;
3DMark 13 – Graphics: Sky Driver – 3714, Fire Strike – 939, Time Spy – 299;
PCMark 08: Home Conventional – 2710;
PCMark 10: 3267;
Geekbench 3 32-bit: Single-Core: 3147, Multi-core: 6805;
Geekbench 4 64-bit: Single-Core: 3711, Multi-core: 7154;
CineBench R15: OpenGL 43.43 fps, CPU 322 cb, CPU Single Core 115 cb;
x264 HD Benchmark 4.0 32-bit: Pass 1 – 112.41 fps, Pass 2 – 21.47 fps.
All in all this Switch 5 performs better than I was expecting from a Core U passively cooled tablet. In fact, it performs betters than many fan cooled ultraportables.
It handles standard chores fine and it should tackle more intense CPU loads alright as well. It’s not a computer that you should get for heavy loads or for games though, that’s why I wouldn’t recommend going for the Core i7 configurations hoping for extra performance.
Noise, Heat, Connectivity, Speakers and others
As mentioned multiple times during this article, the Switch 5 is passively cooled and uses
Acer’s patented LiquidLoop cooling which seems to do a great job at keeping the i5 U processor at bay. This computer doesn’t get any moving components inside either (like a HDD) and I didn’t notice any kind of electrical noise or whining on my sample, which means the Switch 5 runs perfectly quiet.

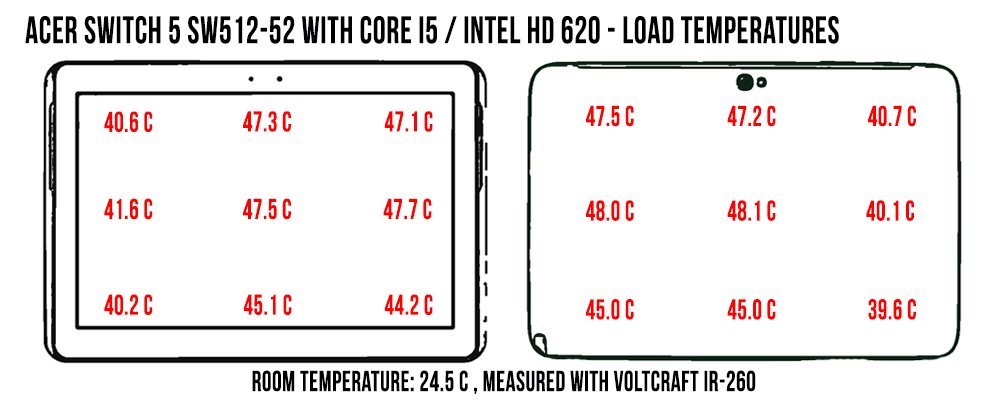

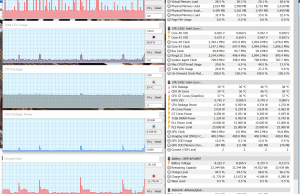

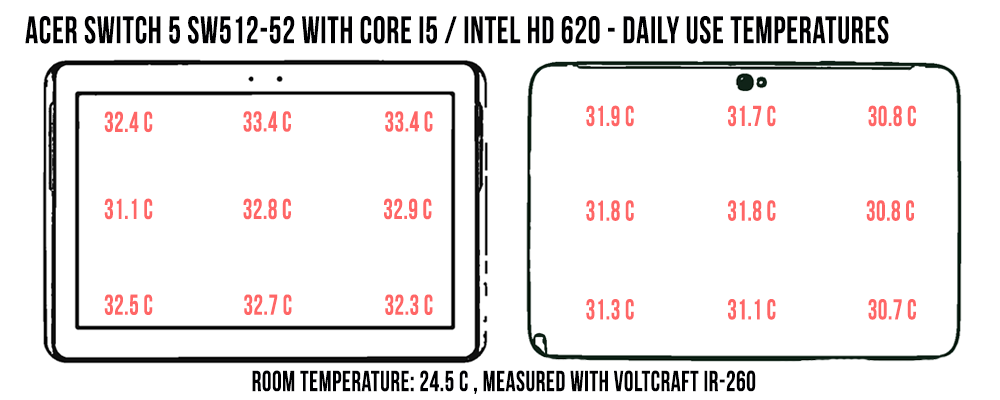

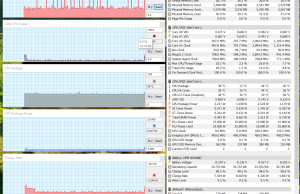

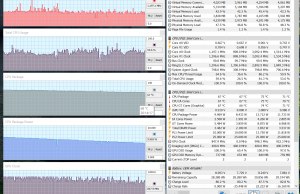

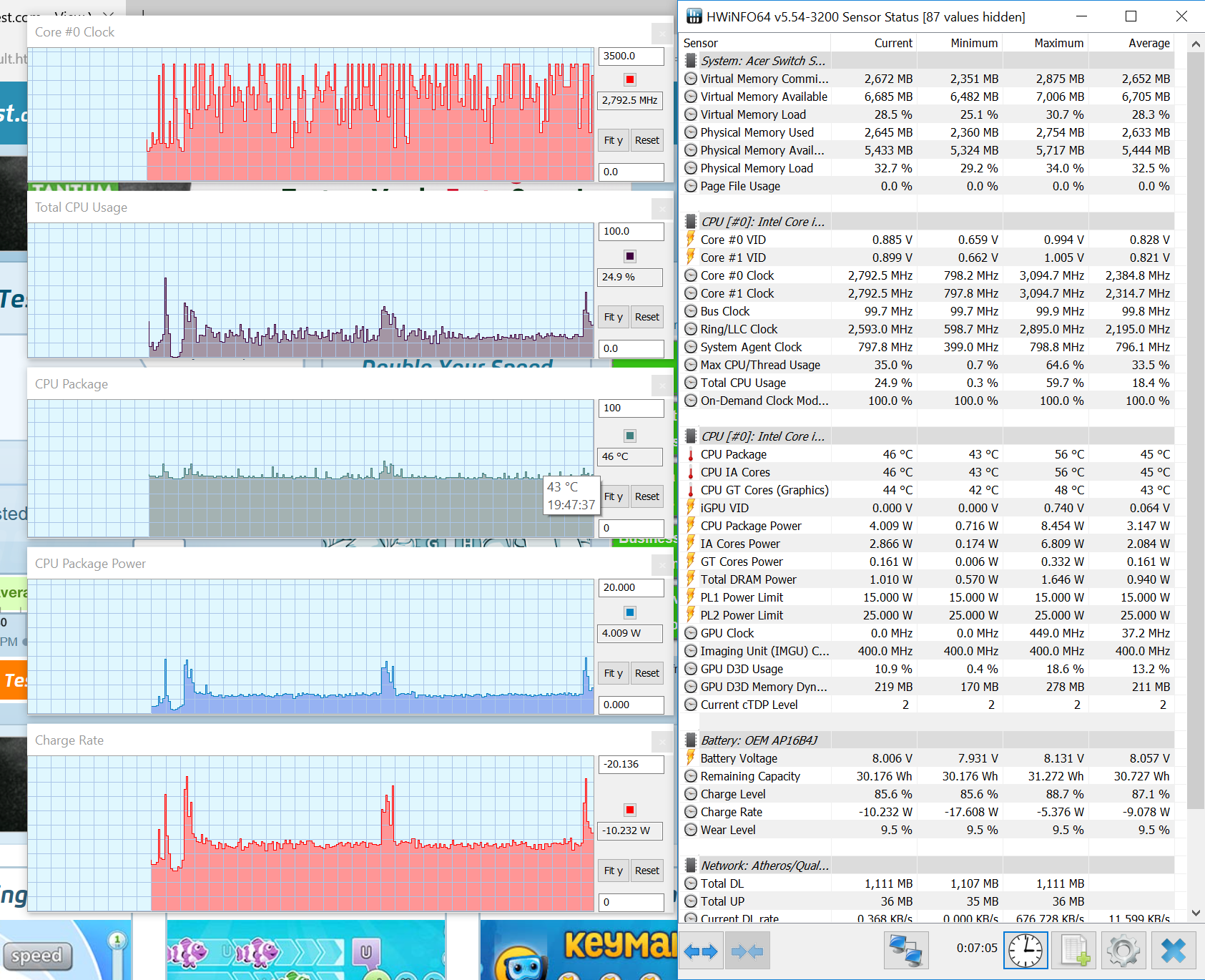

As far as temperatures go, the slate gets to about mid 30s with daily use and high 40s with gaming and benchmarks. That’s hot, but you should keep in mind that all the components are placed behind the screen and as long as you’re using it as a laptop, you’re not going to perceive those temperatures as with a normal notebook that houses the components beneath the keyboard. In fact, the keyboard folio stays at some very comfortable levels, usually under 30 degrees even on its top part where it attaches to the tablet. Performing demanding chores while holding it as a tablet on the other hand can quickly get uncomfortable.
*Daily Use – 1080p Youtube clip in EDGE for 30 minutes
*Load – playing NFS: Most Wanted for 30 minutes

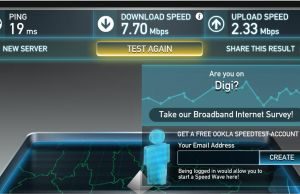

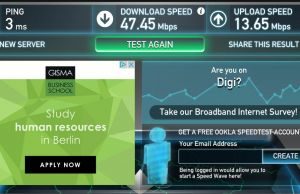

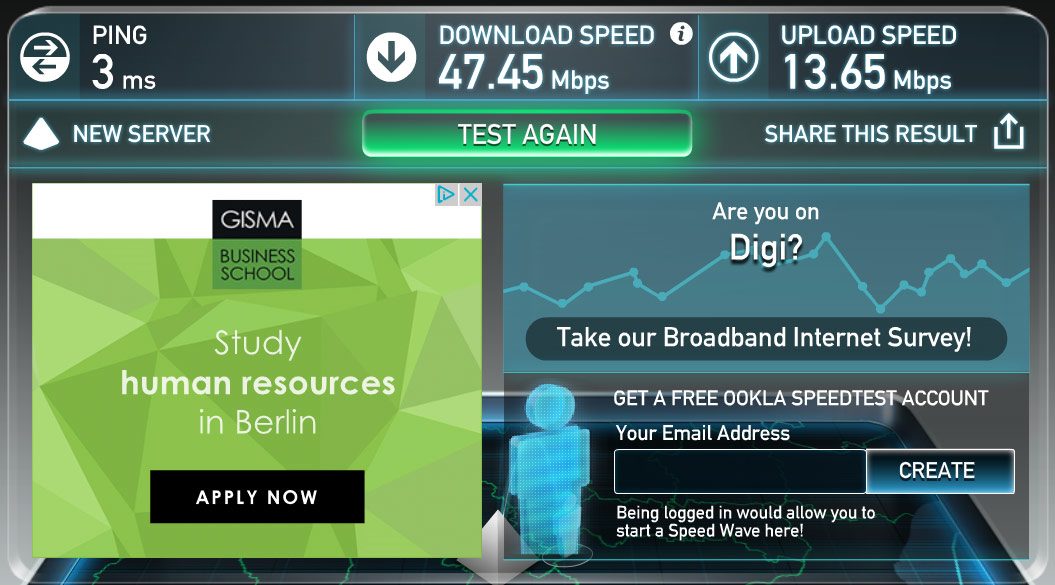

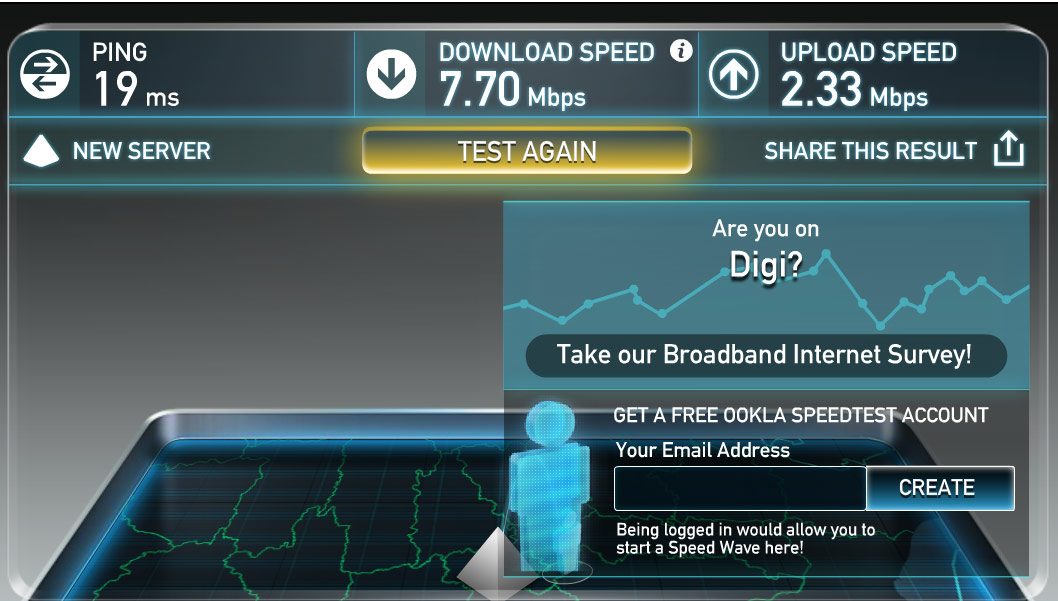

As far as connectivity goes, there’s Wireless AC and Bluetooth on this computer. Acer went with Qualcomm QCA6174 wireless module which performed while close to the router, but really struggled at 30 feet with 2 walls in between.
I haven’t seen other people complain about this aspect though, so there’s a fair chance my unit encountered some drivers issues or just didn’t pair well with my setup. Regardless, poor wireless performance at longer ranges is something I’d look for and test if I were to get a Switch 5.

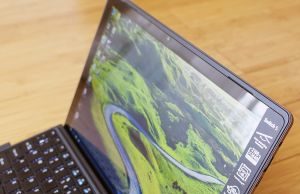

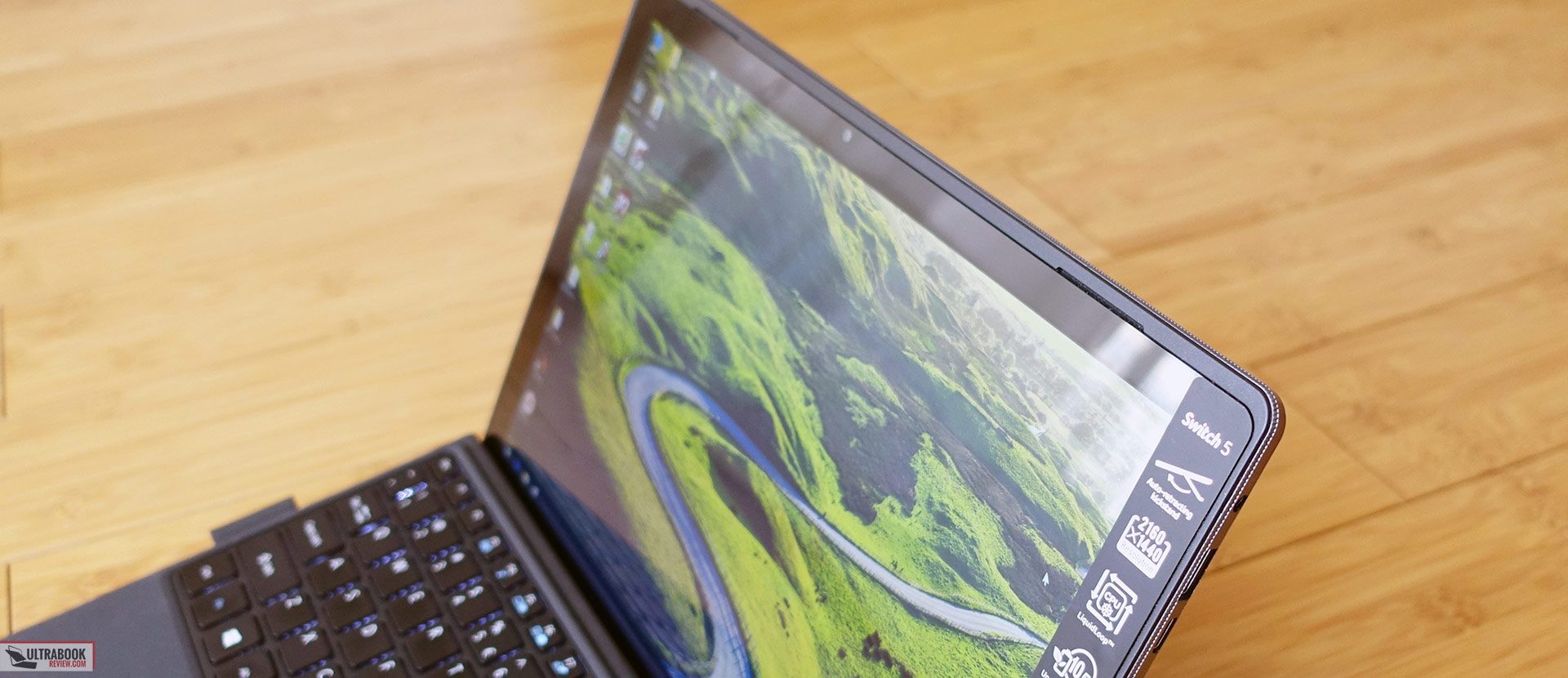

The speakers are placed on top of the screen and face the user, something I appreciate. They’re not very loud though, we only measured top volumes of up to 76 dB at head level, and they’re also tinnier than I’d want, with lows noticeable only down to around 140 Hz.

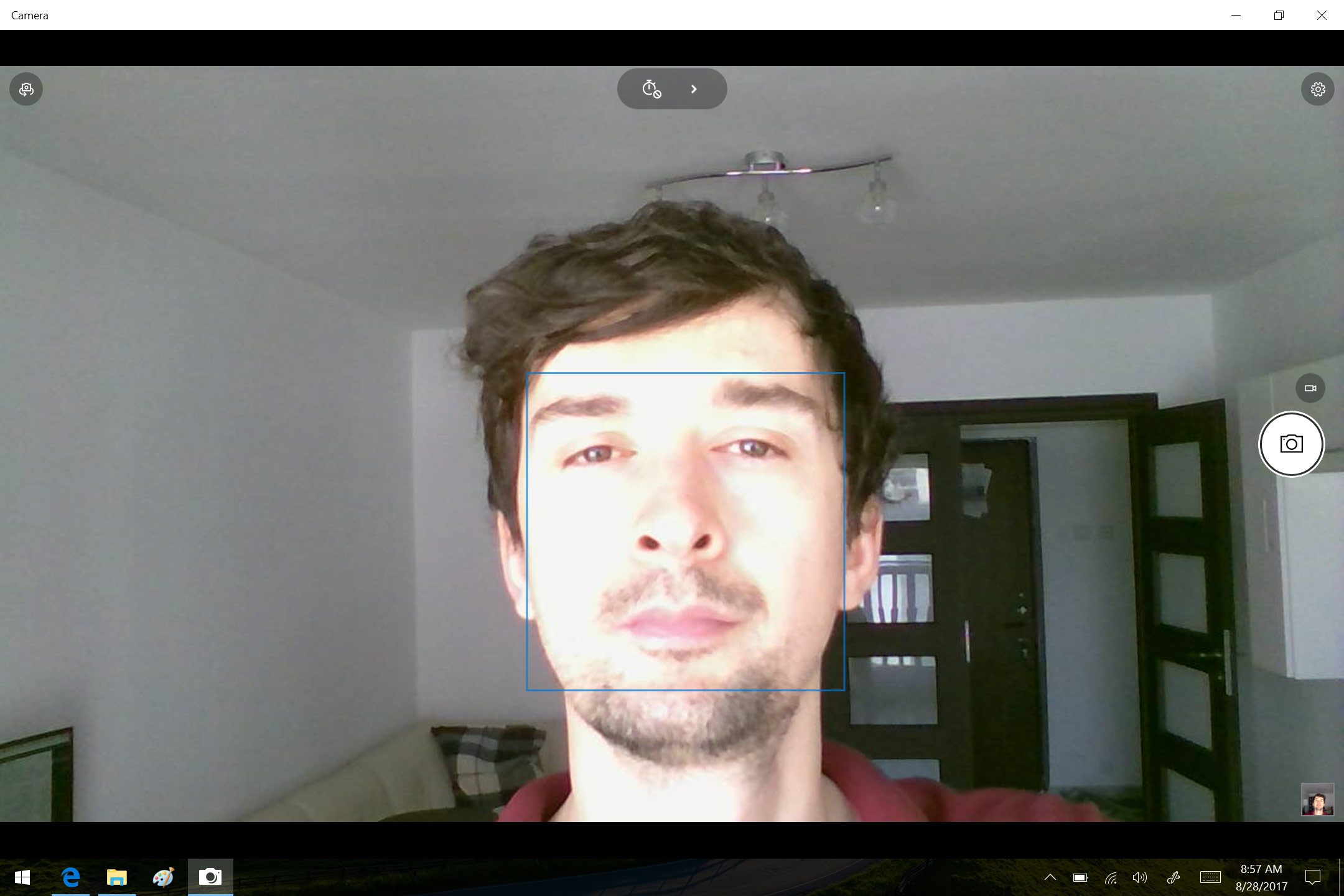

One last aspect to mention here is the webcam. It gets an HD sensor, is placed on top of the screen, where it should be, and takes some decent shots, but is nothing to brag about.
There’s a 39 Wh battery on the Switch 5, which is a tad bigger than the battery on the Aspire 12 Alpha (37 Wh), but smaller than what the Surface Pro 5 offers (45 Wh).
Given its size, the hardware inside and the fairly high-resolution display, you shouldn’t expect this to be a marathon runner. It does alright though with daily use, as you’ll see below (we set the screen at 30% brightness, roughly 120 nits):
9.1 W (~4 h 15 min of use) – very light browsing and text editing in Google Drive, Balanced Mode, screen at 30%, Wi-Fi ON;

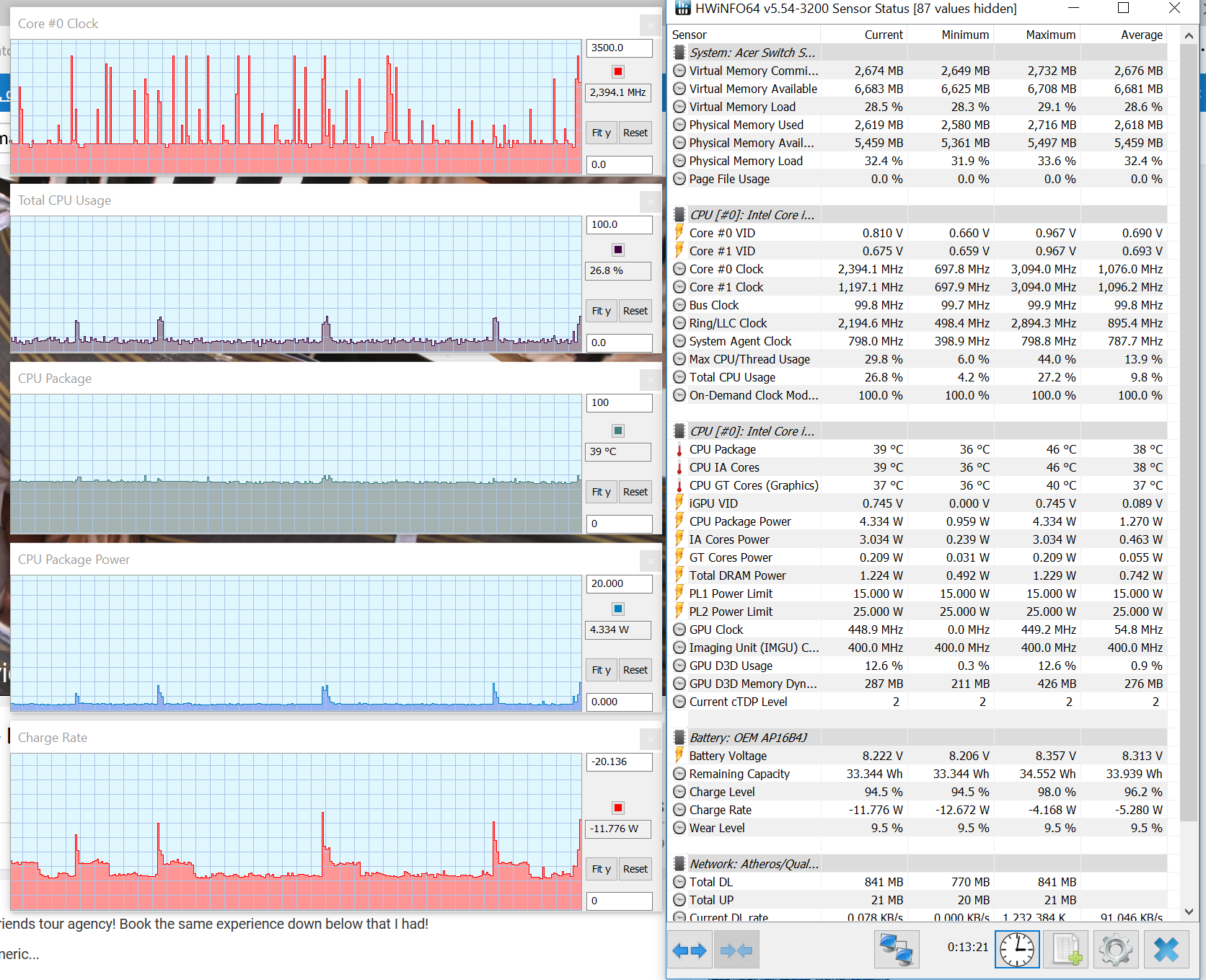

5.3 W (~7 h 20 min of use) – 1080p fullscreen video on Youtube in Internet Explorer, Balanced Mode, screen at 30%, Wi-Fi ON;

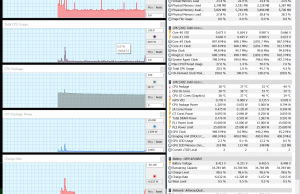

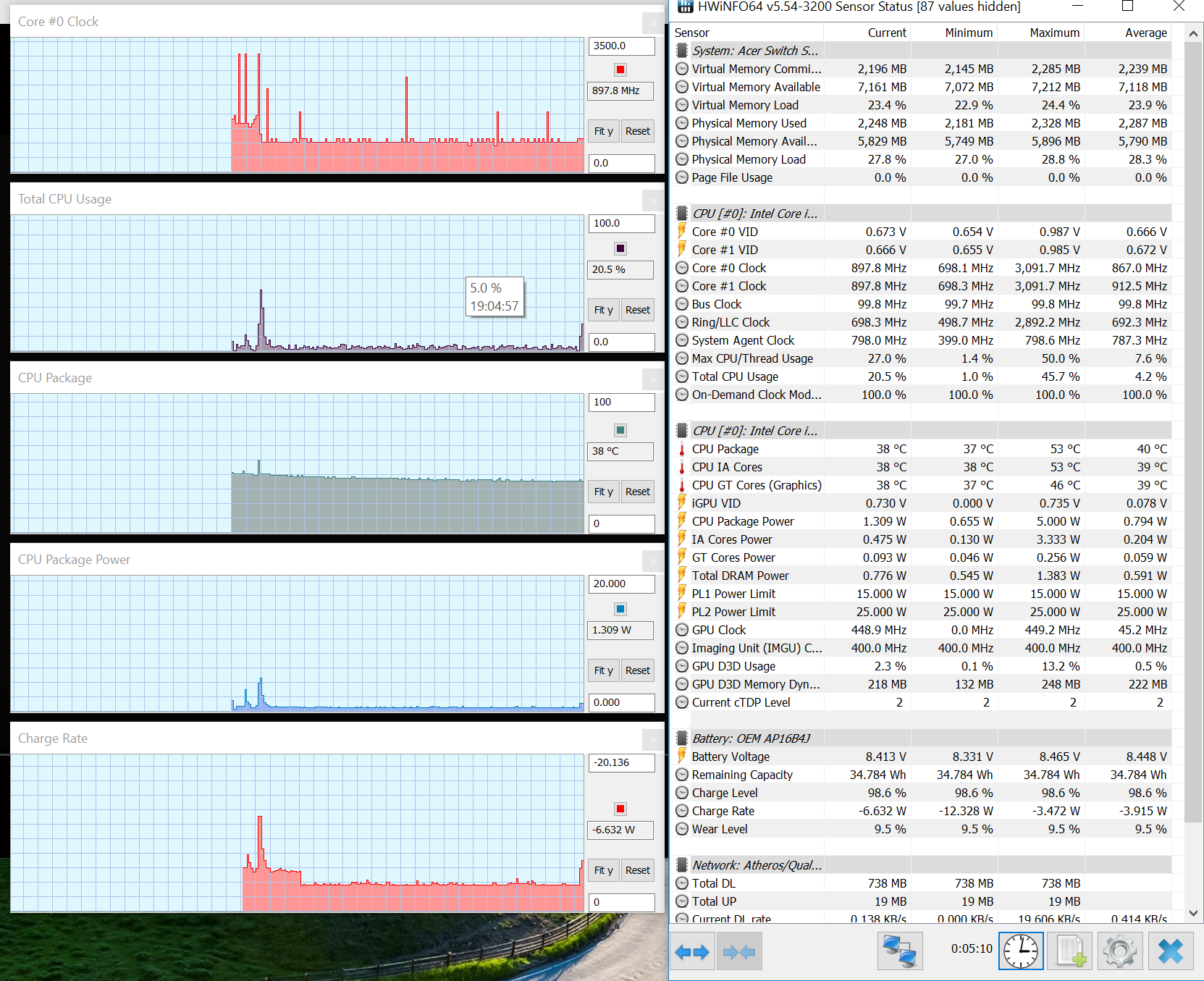

3.9 W (~10 h of use) – 1080p fullscreen .mkv video in the Movie app, Balanced Mode, screen at 30%, Wi-Fi ON;

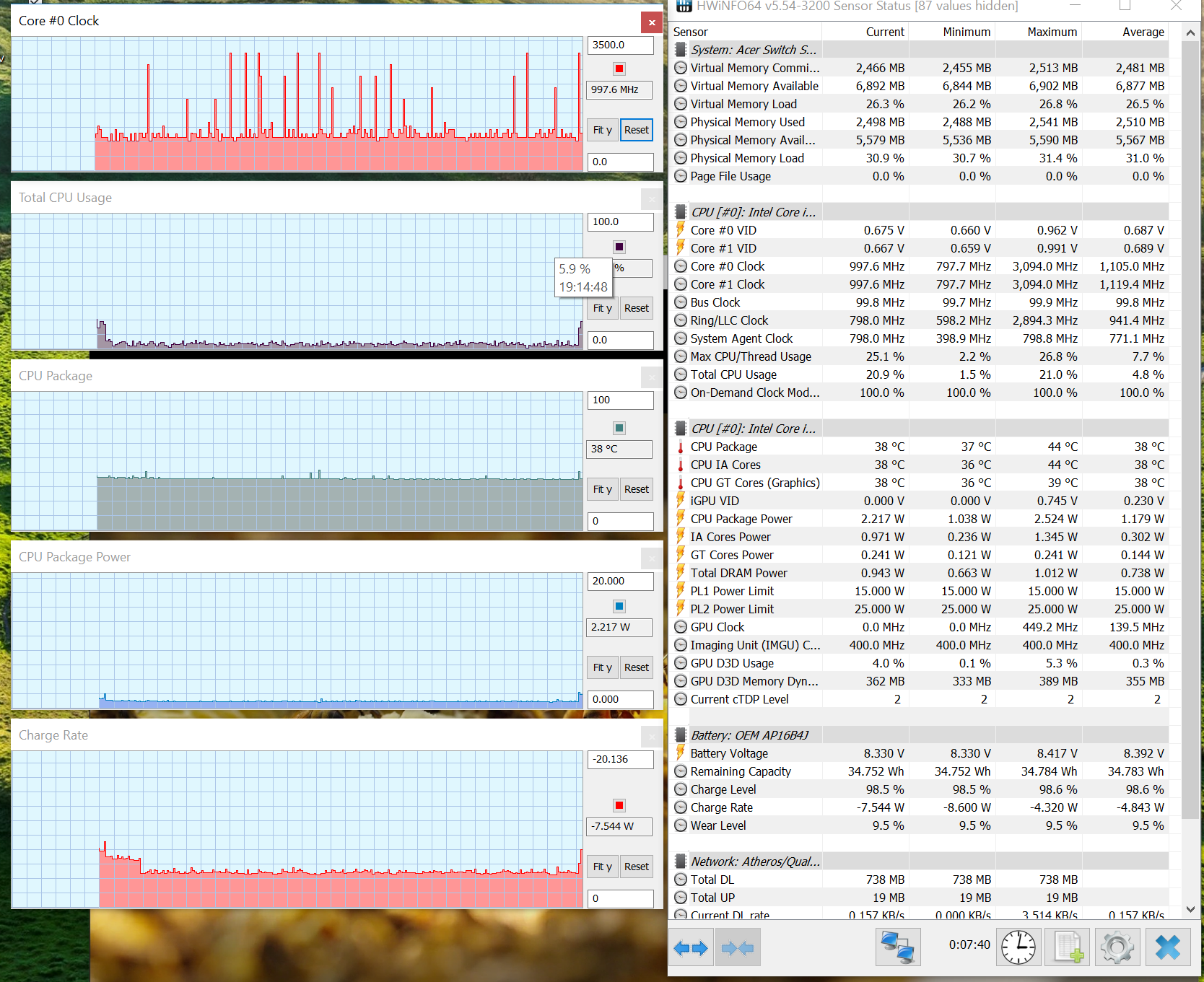

4.9 W (~8 of use) – 4K fullscreen .mkv video in the Movie app, Balanced Mode, screen at 30%, Wi-Fi ON;
14.8 W (~2 h 35 min of use) – heavy browsing in Edge, Balanced Mode, screen at 30%, Wi-Fi ON;
23 W (~1 h 30 min of use) – gaming on battery, High Performance Mode, screen at 30%, Wi-Fi ON.
You’ll get a little shorter runtimes with the i7 configuration, in case you decide to opt for it.
Acer pairs this laptop with a compact 45 Wh charger that weighs .155 kg/ .34 lbs (European Version). It lacks fast charging, and a full recharge takes a little under 2 hours.
Price and availability
The Acer Switch 5 SW512-52 is available in most regions as of October 2017.
I find the best value in the Core i5-7200U configuration with 8 GB of RAM and 256 GB of SSD storage, which is listed for $799 in the US, with the pen and keyboard-folio included. The same configuration is more expensive in Europe though, starting at 1000 EUR. Expect to pay around $1100 in the US and 1300 EUR in Europe for the i7 / 8 GB RAM/ 512 GB SSD models.
Follow this link for updated configurations and prices at the time you’re reading the article.
As far as the competition goes, there are only two other options with passively cooled Core U hardware as of right now:
– Sells for around $750 for an i5 configuration, but with older hardware, smaller battery and crappier speakers. I would only consider it over the Switch 5 if heavily discounted. Acer Aspire 12 Alpha
– a similar configuration sells for $1300 in the US and 1200 EUR in Europe without the keyboard and pen. This is a nicer tablet across the board, better built, with a much nicer screen, better speakers and larger battery. It doesn’t perform as well as the Switch 5 with demanding loads though and is much more expensive. Also keep in mind that only the Core i5 models are fanless, the Core i7 configurations get a fan inside. Microsoft Surface Pro 5

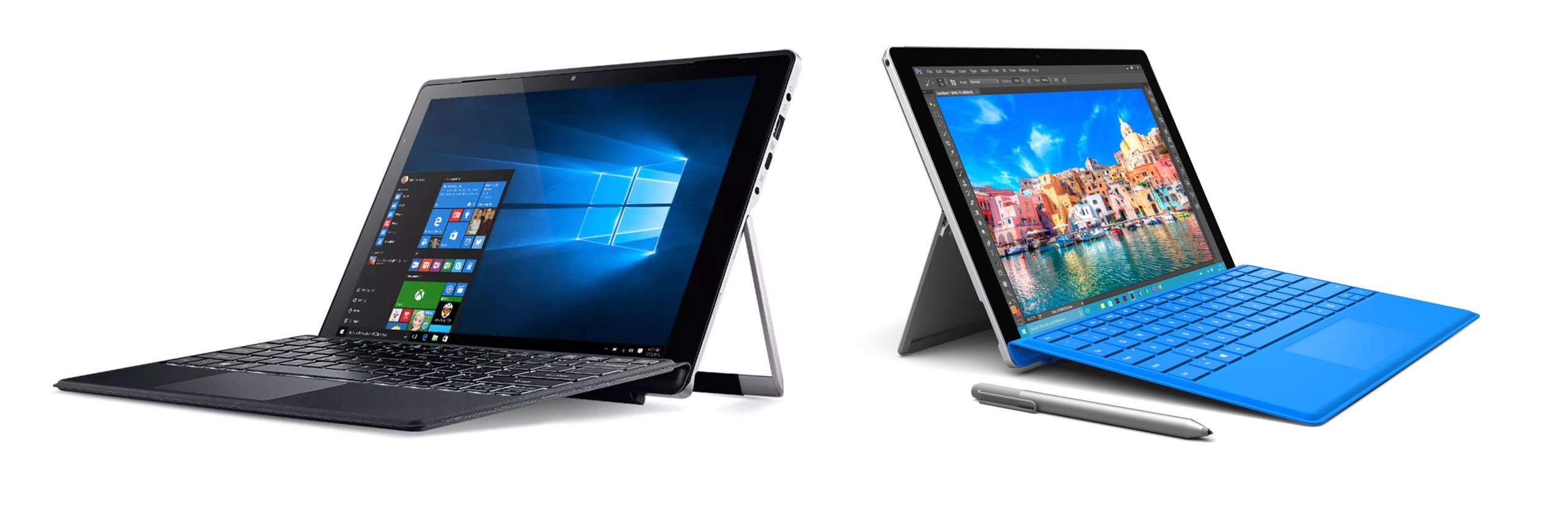

Alternatives: Acer Alpha 12 (left) and Microsoft Surface Pro (right)
At the end of the day, if you’re in the market for a Windows tablet able to match the performance of most thin-and-light notebooks, while running completely silent, the Acer Switch 5 SW512-52 is one of the best options to consider.
In fact, unless you have an unlimited budget, in which case the Microsoft Surface Pro 5 is the one for you, this Switch 5 is your best bet as of October 2017. Your pool broadens as long as you can live with a fan inside your computer (Asus Transformer 3 Pro, Lenovo Miix 720, the 2017 HP Spectre X2 or the Dell Latitude 12 2-in-1), but I for one would rather pick one of these fanless devices.
I’d personally aim for the i5 configuration of the Switch 5 which sells for $800 in the US and can handle everyday use very well and even tackle more demanding loads if needed, to some extent. You do have to understand that this is not the device to get if you’re after the best performer in a compact body. It is however the device to get if you prefer the tablet-like form factor with its compact design, reduced weight and the ability to take notes and draw with the included Active pen. On the other hand, the form-factor comes with some drawback, the important one being the smaller battery tucked inside.
The Switch 5 is not bad as a laptop either, as long as you keep its mostly on a desk, with decent IO and a surprisingly good typing experience. You will get improved versatility, improved performance and longer run-times in some of the
clam-shell and convertible laptops out there. Very few of them are fanless though.

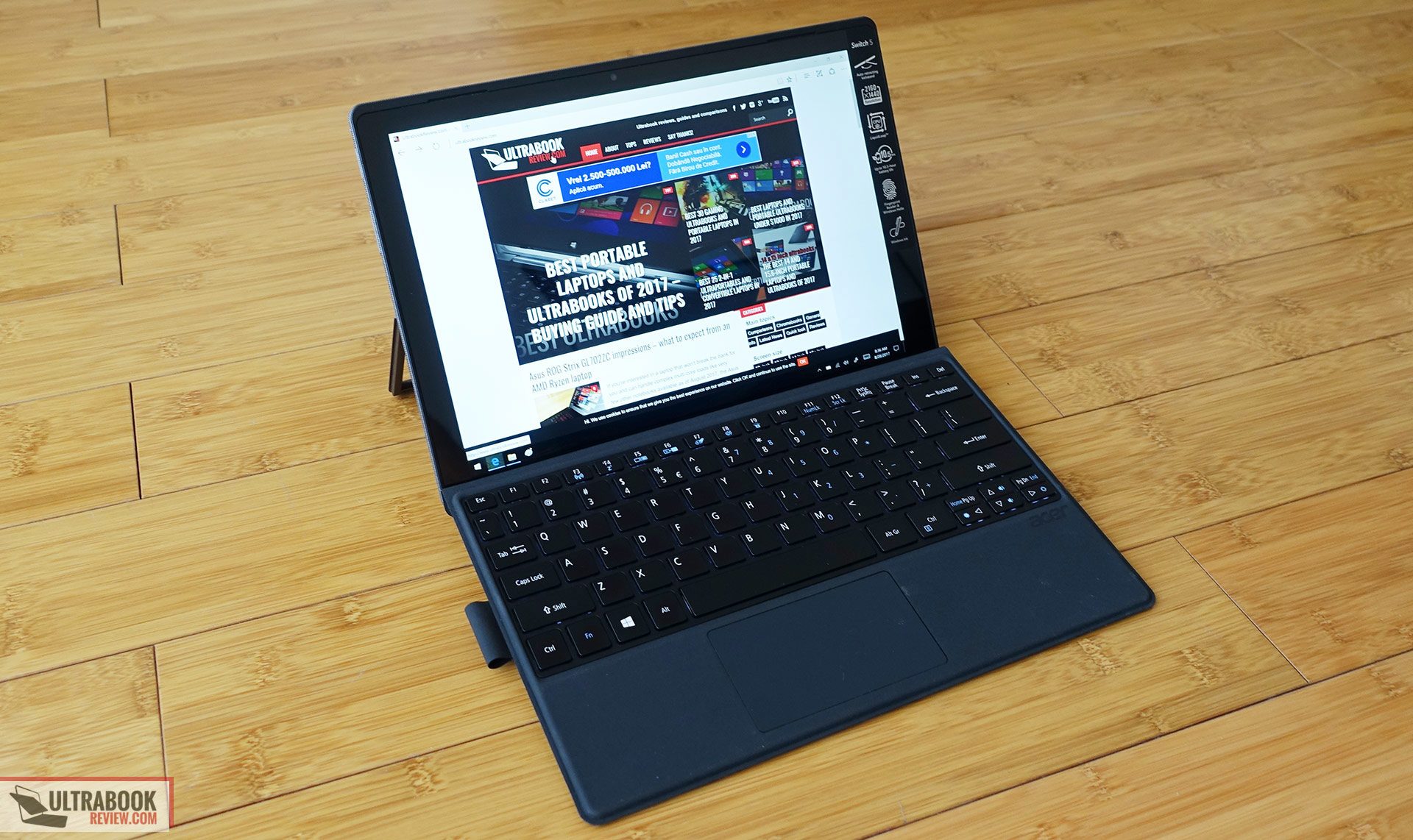

In summary, the Acer Switch 5 SW512-52 is a best-buy in its niche of Windows running tablets, with an excellent price and few quirks. Let us know what you think about it in the comments section below, and get in touch if you have anything to add to our impressions or any questions, we’re around and ready to help out.
